StorageTek SL150 LEDs



SL150 Front LEDs

LED Name Description
Locate Aids in identification of the specific tape library in need of attention.
Fault A fault anywhere in the library triggers this fault LED. Look for active fault indicators on other components
OK Indicates the library is operational



SL150 Rear LEDs

LED Name Description
Locate Library: Aids in identification of the specific tape library in need of attention.
Fault Library: A fault anywhere in the library triggers this fault LED. Look for active fault indicators on other components
Robot: Indicates a failure anywhere in the robot
OK

Library: Indicates the library is operational
Robot: Indicates the robot is functioing properly



SL150 Tape Drive LEDs


LED Name Description
Ready to Remove Indicates the tape drive can be safely removed
Fault Indicates a tape drive tray failure
OK Indicates the tape drive is functioing properly



SL150 Module Contoller LEDs


LED Name Description
Fault Indicates a fault anywhere in the module controller (KLE) card. The fault LED turns on and turns off the OK LED for that specific controller
OK Indicates the module controller is functioing properly

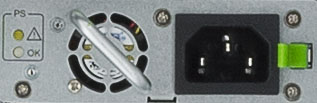

SL150 Power Supply LEDs

LED Location Description
Fault Indicates a power supply failure
OK The power supply is operating normally.
