SPARC T4-1 Wiring Diagram

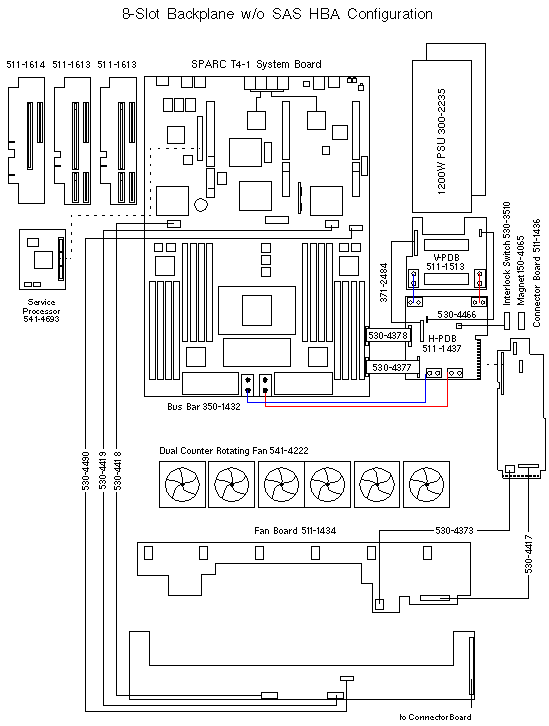

8-Slot Backplane w/o SAS HBA Configuration

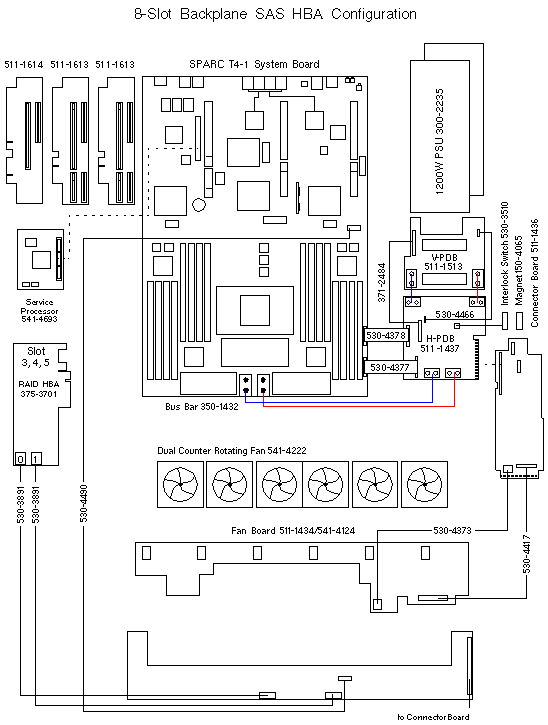

8-Slot Backplane SAS HBA Configuration
