7100177 511-1708 541-4587 541-4586
0MB ATO Option
w/o Processors
w/o Heatsinks
0MB Board
w/o Sheetmetal
FAB 271-1124
0MB Assembly
w/o Processors
w/o Heatsinks
0MB FRU
w/o Processors
w/o Heatsinks

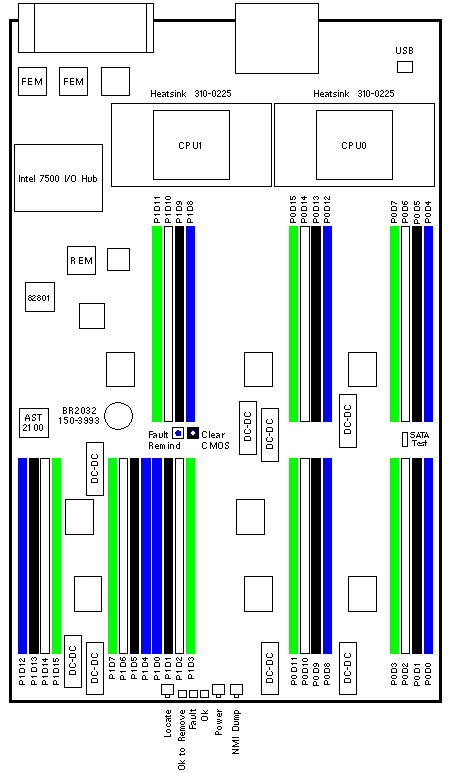

Sun Server X2-8 / Sun Fire X4800 M2 Codename: G5+

Notes

  1. The minimum Solaris operating system is Solaris 10 10/09.

Thermal Grease Notes

  1. Heatsink 310-0225 is pre-greased with ShinEtsu X23-7783D.
  2. The System Board FRU includes two 250-1802 Cleaning Wipes and
    two 310-0065 Shin-Etsu X23-7783D Thermal Grease Syringes.

Memory Installation Notes

  1. Install the first DIMMs in Blue slots D0, D4, D8, and D12.
  2. Install the second DIMMs in White slots D2, D6, D10, and D14.
  3. Install the third DIMMs in Black slots D1, D5, D9, and D13.
  4. Install the fourth DIMMs in Green slots D3, D7, D11, and D15.

System Board Notes

  1. Slot BL0 is always the Master.
  2. Install System Boards in BL0 and BL3 or in all slots.
  3. The same processor type and speed is required on all System Boards.
  4. The System Board is not a hot swap component.
  5. A RAID Expansion Module is only supported on the Master System Board.
  6. One FEM may be installed on each System Board.

References

  1. Sun Server X2-8 / Sun Fire X4800 M2 Server Documentation Library.
