511-1740 511-1245 541-4706 7025254

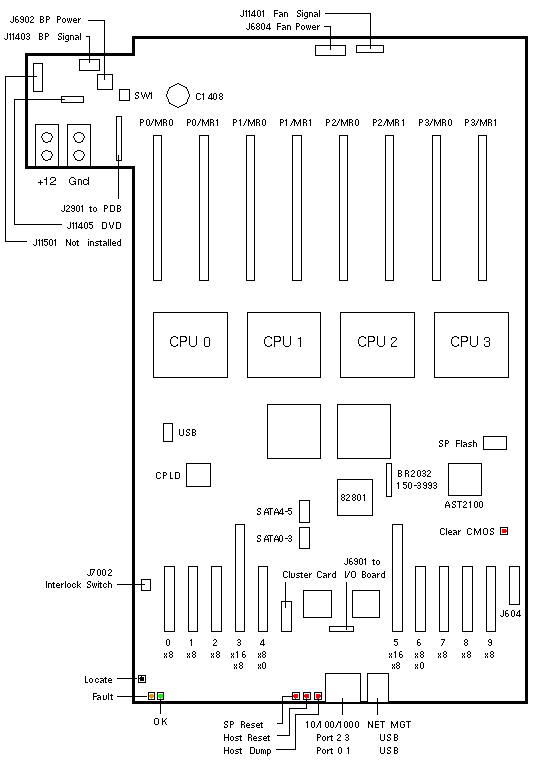

System Board Rear I/O Board Assembly/FRU
511-1740 + 511-1245
Tray 341-5567
Pkg FRU 7012417
Assembly/FRU
511-1740 + 511-1245
Tray 341-5567
Pkg FRU 7025255

Headers, Jumpers, LEDs, and Switches

LOCATION PINS SETTING DESCRIPTION
J1 1-2 Out Disable MP
J3 1-2 Out Unknown
J17 1-2 Out MFG
J28 1-3 Out BIOS REC
J39 1-3 Out Unknown
J40 1-3 Out DESC Override
J602 1-2 Out Unknown
J603 1-2 Out SP Debug
J702 1-2 Out Unknown
J705 1-2 Out FLA1
J706 1-2 Out FLA0
J901 1-3 Out Unknown
J1302 1-2 In SP Write Protect
J4449 1-2 Out Unknown
J12101 1-2 In IMON Slope Hi

Sun Server X2-4 / Sun Fire X4470 M2 Codename: Callisto+

Notes

  1. The minimum Solaris operating system is Solaris 10 09/10.
  2. In a two CPU configuration, install P0 and P2 and install fillers in P1 and P3.
  3. A two CPU configuration will operate at low-line, 100-127Volt, AC input.
  4. A four CPU configuration requires high-line, 200-240Volt, AC input.

Thermal Grease Notes

  1. The System Board FRU includes four 250-1802 Cleaning Wipes, and four
    310-0065 Shin-Etsu X23-7783D Thermal Grease Syringes.
  2. Heatsink FRU F310-0228 includes Heatsink 310-0228, one 250-1802 Cleaning Wipe
    and one 310-0065 Shin-Etsu X23-7783D Thermal Grease Syringe. The Heatsink is
    pre-greased with Shin-Etsu G751 or X23-7783D.

PCI Express Notes

  1. PCI Express Slots 3 and 4 have 16 shared lanes available. If an x8 card is installed
    in Slot 3, Slot 4 has eight lanes available. If an x16 card is installed in Slot 3, no card
    will operate in Slot 4.
  2. PCI Express Slots 5 and 6 have 16 shared lanes available. If an x8 card is installed
    in Slot 5, Slot 6 has eight lanes available. If an x16 card is installed in Slot 5, no card
    will operate in Slot 6.
  3. HBA 375-3640 is supported in Slot 2 only.
  4. HBA 375-3644 is supported in Slot 4 only. Use as an internal HBA is not supported.
  5. Refer to X4470 Product Notes for additional card and slot restrictions.

References

  1. >Sun Server X2-4 / Sun Fire X4470 M2 Server Documentation.
