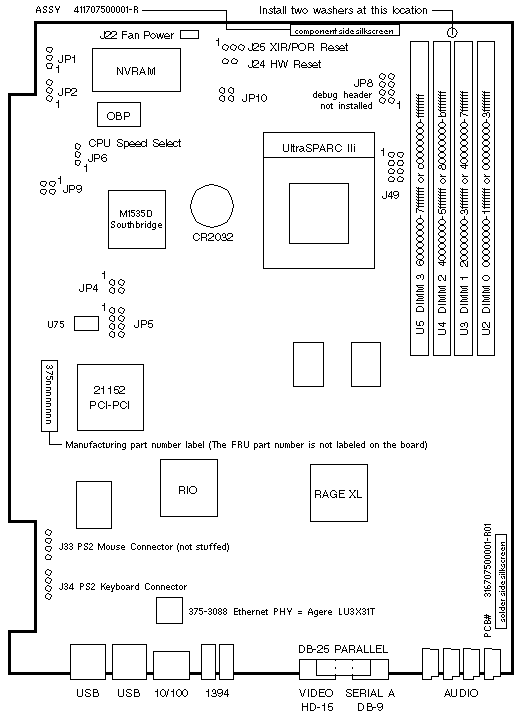

Jumper Settings


Sun Blade 150

A41

Sun Blade 150 Codename: Grover+

375-3063 375-3084 375-3088
0MB Non-FRU
375-3088 + 550MHz
ATO Option 6182A		 0MB Non-FRU
375-3088 + 650MHz
ATO Option 6183A		 0MB FRU
w/o UltraSPARC IIi
July 2002

JUMPER PINS SETTING DESCRIPTION
JP1 1-2
2-3		 In
In		 Select Flash PROM (default)
Select ROMBO
JP2 1-2
2-3		 In
In		 OBP write protected (default)
OBP write enabled
JP4 1-2
3-4		 In
Out		 UltraSPARC IIi CPU (default)
UltraSPARC IIi CPU (default)
JP5 1-8 Out UltraSPARC IIi CPU
JP6 * 1-2
2-3		 In
In		 550MHz UltraSPARC IIi CPU
650MHz UltraSPARC IIi CPU
JP9 1-4 Out OBP Configuration
JP10 3-4
1-4		 In
Out		 Hardware Controls CPU Fan (default)
CPU Fan Always On
J49 1-8 Out Debug header
* see below for JP3 and JP6 function in FAB 316707500001-R0B-1

FAB 316707500001-R0B-1

Pre-production PCB# 316707500001-R0B-1 has a layout similar to the Sun Blade 100.
A 6-Pin Speed Select jumper is at JP3, and a 2-Pin Registered DIMM jumper is at JP6.

JUMPER PINS SETTING DESCRIPTION
JP3 1-2
3-4
5-6		 In
In
In		 550MHz UltraSPARC IIi
JP3 1-2
3-4
5-6		 Out
Out
Out		 650MHz UltraSPARC IIi
JP6 1-2
1-2		 Out
In		 Disable Registered DIMM (default)
Enable Registered DIMM


PCI Slot Device Paths

Single Function PCI Cards
PCI Slot MHz Device Path
3 33 MHz /pci@1f,0/pci@5/<device>@0
2 33 MHz /pci@1f,0/pci@5/<device>@1
1 33 MHz /pci@1f,0/pci@5/<device>@2

Multi Function PCI Cards
PCI Slot MHz Device Path
3 33 MHz /pci@1f,0/pci@5/pci@0/<device>
2 33 MHz /pci@1f,0/pci@5/pci@1/<device>
1 33 MHz /pci@1f,0/pci@5/pci@2/<device>

Notes

  1. The minimum operating system is Solaris 8 2/02.
  2. The Sun Blade 150 was announced in August 2002.

Memory Notes

  1. The minimum memory requirement is one DIMM in U2.
  2. The memory installation sequence is U2, U3, U4, and U5.
  3. Each DIMM slot addresses 1GB with >=550MHz UltraSPARC IIi.

System Board Notes

  1. System Board 375-3088 was used in the Sun Blade 150 until mid November 2003.
  2. System Board 375-3152 was used in the Sun Blade 150 after mid November 2003.
  3. Systems built with System Board 375-3088 and 375-3152 have the same EZ label.
  4. M1535D Pin T10 (UPSPWR) receives power from the 3V CR2032 on 375-3088.
  5. M1535D Pin T10 (UPSPWR) receives power from 3.3Vdd on 375-3152.
  6. When installing the system board onto a tray, make sure the four rear panel EMI springfingers are installed above the IEEE1394 connectors, not inside the connectors.

UltraSPARC IIi Notes

  1. The 650MHz UltraSPARC IIi is similar to the 270-440MHz UltraSPARC IIi (Sabre and Sapphire-Red).
    Differences include integrated L2 Cache and SDRAM Memory Control.
  2. The 650MHz UltraSPARC IIi is based on the 500MHz UltraSPARC IIe (Hummingbird).
  3. The 550-650MHz UltraSPARC IIi OBP and OS name is UltraSPARC IIe.
  4. The 550-650MHz UltraSPARC IIi is labeled UltraSPARC IIi or IIi+.
  5. The 550MHz FRU F100-7192 includes 100-7192, 527-1023, or 527-1067.
  6. The 550MHz FRU F527-1079 includes 100-7192, 527-1078, or 527-1079.
  7. The 650MHz FRU F527-1077 includes 527-1023 or 527-1077.
PART # DESCRIPTION
F100-7192
100-7192
527-1023
527-1067		 550MHz UltraSPARC IIi FRU w/ Ground Ring
550MHz UltraSPARC IIi KFAB
650MHz UltraSPARC IIi KFAB (deviation WO_25102)
550MHz/DB650MHz UltraSPARC IIi
F527-1079
100-7192
527-1078
527-1079		 550MHz UltraSPARC IIi FRU w/ Ground Ring
550MHz UltraSPARC IIi KFAB (deviation WO_26984/WO_27317)
550MHz UltraSPARC IIi DMOS4
550MHz UltraSPARC IIi DMOS4
F527-1077
527-1023
527-1077		 650MHz UltraSPARC IIi FRU w/ Ground Ring
650MHz UltraSPARC IIi KFAB (deviation WO_26984/WO_27317)
650MHz UltraSPARC IIi DMOS4
F527-1023
527-1023		 650MHz UltraSPARC IIi FRU w/ Ground Ring
650MHz UltraSPARC IIi KFAB

Reference

Sun Blade 150 Service Manual, 816-4379.


Sun Blade 150

A41

Sun Blade 150 Refresh Codename: Grover+ Refresh

375-3166 375-3167 375-3152
0MB Non-FRU
375-3152 + 550MHz
ATO Option 6182A		 0MB Non-FRU
375-3152 + 650MHz
ATO Option 6183A		 0MB FRU
w/o UltraSPARC IIi
September 2003


* Components at J34, J49, JP5, and U75 were removed from 375-3152 by WO_29130 in April 2004.

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
JP1 1-2
2-3		 In
In		 Select Flash PROM (default)
Select ROMBO
JP2 1-2
2-3		 In
In		 OBP write protected (default)
OBP write enabled
JP4 1-2
3-4		 In
Out		 UltraSPARC IIi CPU (default)
UltraSPARC IIi CPU (default)
JP5 1-8 Out UltraSPARC IIi CPU
JP6 1-2
2-3		 In
In		 550MHz UltraSPARC IIi CPU
650MHz UltraSPARC IIi CPU
JP9 1-4 Out OBP Configuration
J49 1-8 Out Debug header

PCI Slot Device Paths

Single Function PCI Cards
PCI Slot MHz Device Path
3 33 MHz /pci@1f,0/pci@5/<device>@0
2 33 MHz /pci@1f,0/pci@5/<device>@1
1 33 MHz /pci@1f,0/pci@5/<device>@2

Multi Function PCI Cards
PCI Slot MHz Device Path
3 33 MHz /pci@1f,0/pci@5/pci@0/<device>
2 33 MHz /pci@1f,0/pci@5/pci@1/<device>
1 33 MHz /pci@1f,0/pci@5/pci@2/<device>

Notes

  1. The minimum operating system is Solaris 8 2/02.
  2. The Sun Blade 150 Refresh was announced in November 2003.
  3. The Sun Blade 150 Refresh includes a DVD-ROM and an 80GB Disk Drive.

Memory Notes

  1. The minimum memory requirement is one DIMM in U2.
  2. The memory installation sequence is U2, U3, U4, and U5.
  3. Each DIMM slot addresses 1GB with >=550MHz UltraSPARC IIi.
  4. A minimum of 256MB memory is required when IEEE 1394 devices are installed.

System Board Notes

  1. System Board 375-3088 was not used in the Sun Blade 150 Refresh.
  2. System Board 375-3152 is used in the Sun Blade 150 Refresh.
  3. The Sun Blade 150 and Sun Blade 150 Refresh have the same EZ label.
  4. CPU thermal monitoring and shutdown circuitry was added to 375-3152.
  5. M1535D Pin T10 (UPSPWR) receives power from 3.3Vdd on 375-3152.
  6. When installing the system board onto a tray, make sure the four rear panel EMI springfingers are installed above the IEEE1394 connectors, not inside the connectors.

UltraSPARC IIi Notes

  1. The 650MHz UltraSPARC IIi is similar to the 270-440MHz UltraSPARC IIi (Sabre and Sapphire-Red).
    Differences include integrated L2 Cache and SDRAM Memory Control.
  2. The 650MHz UltraSPARC IIi is based on the 500MHz UltraSPARC IIe (Hummingbird).
  3. The 550-650MHz UltraSPARC IIi OBP and OS name is UltraSPARC IIe.
  4. The 550-650MHz UltraSPARC IIi is labeled UltraSPARC IIi or IIi+.
  5. The 550MHz FRU F100-7192 includes 100-7192, 527-1023, or 527-1067.
  6. The 550MHz FRU F527-1079 includes 100-7192, 527-1078, or 527-1079.
  7. The 650MHz FRU F527-1077 includes 527-1023 or 527-1077.
PART # DESCRIPTION
F100-7192
100-7192
527-1023
527-1067		 550MHz UltraSPARC IIi FRU w/ Ground Ring
550MHz UltraSPARC IIi KFAB
650MHz UltraSPARC IIi KFAB (deviation WO_25102)
550MHz/DB650MHz UltraSPARC IIi
F527-1079
100-7192
527-1078
527-1079		 550MHz UltraSPARC IIi FRU w/ Ground Ring
550MHz UltraSPARC IIi KFAB (deviation WO_26984/WO_27317)
550MHz UltraSPARC IIi DMOS4
550MHz UltraSPARC IIi DMOS4
F527-1077
527-1023
527-1077		 650MHz UltraSPARC IIi FRU w/ Ground Ring
650MHz UltraSPARC IIi KFAB (deviation WO_26984/WO_27317)
650MHz UltraSPARC IIi DMOS4
F527-1023
527-1023		 650MHz UltraSPARC IIi FRU w/ Ground Ring
650MHz UltraSPARC IIi KFAB

Reference

  1. Sun Blade 150 Service Manual, 816-4379.
  2. Sun Blade 150 Release Notes, 816-1163.
