7026366 7022668

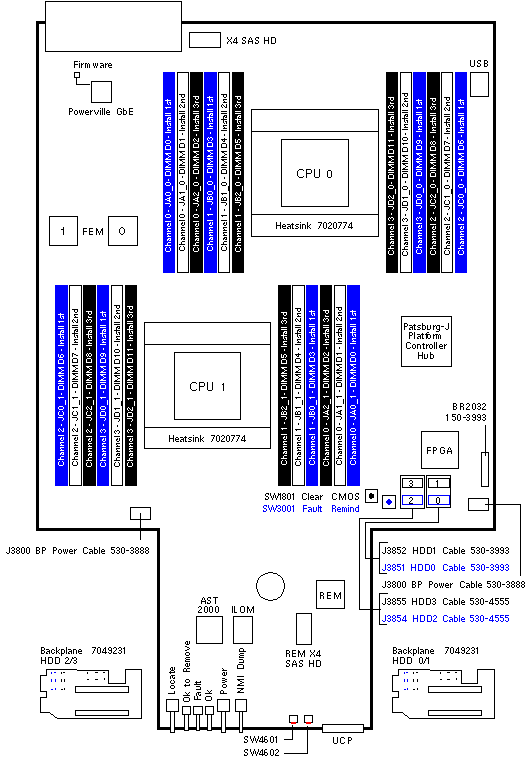

System Board FRU Assembly
System Board 7026366


Notes

  1. The minimum Solaris operating system is Solaris 10 8/11 or Solaris 11 11/11.
  2. The Netra Blade X3-2B / Netra X6270 M3 is supported in the Netra 6000 and Netra 6000 M2.
  3. The part number of the unprogrammed Oracle System Assistant USB is 7038488.
  4. Heatsink 7020774 is pre-greased with Shin-Etsu X23-7783D. The Heatsink include
    Heatsink 7020774, one 250-1802 Cleaning Wipe, and one 310-0065 Shin-Etsu
    X23-7783D Thermal Grease Syringe.
  5. The Blade CRU/FRU includes two 250-1802 Cleaning Wipes, and two 310-0065
    Shin-Etsu X23-7783D Thermal Grease Syringes.

Memory Installation Notes

  1. Install memory filler panel 350-1288 in all unused slots.
  2. Install DIMMs in the blue slots first.
  3. Install DIMMs in the white slots second.
  4. Install DIMMs in the black slots third.
  5. CPU0 and CPU1 require identical memory configurations.
  6. Each CPU supports one, two, or three DIMMs per socket color.
  7. Install the highest capacity DIMMs in the blue sockets, then white, then black.
  8. Refer to the service manual for additional memory configuration information.

References

  1. Netra Blade X3-2B / Netra X6270 M3 Server Module Documentation



7026366 7038932 7046538 7049417

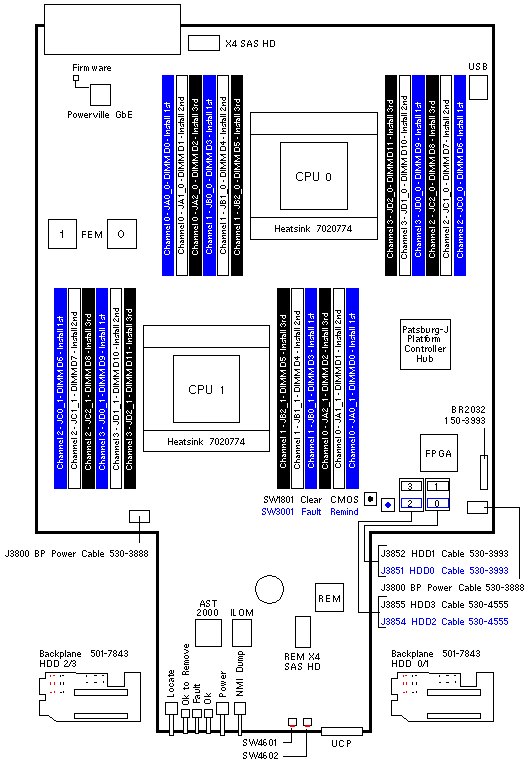

System Board System Board Assembly
System Board 7026366
System Board FRU Assembly
System Board 7046538


Notes

  1. The minimum Solaris operating system is Solaris 10 8/11 or Solaris 11 11/11.
  2. The part number of the unprogrammed Oracle System Assistant USB is 7038488.
  3. Heatsink 7020774 is pre-greased with Shin-Etsu X23-7783D. The Heatsink include
    Heatsink 7020774, one 250-1802 Cleaning Wipe, and one 310-0065 Shin-Etsu
    X23-7783D Thermal Grease Syringe.
  4. The Blade CRU/FRU includes two 250-1802 Cleaning Wipes, and two 310-0065
    Shin-Etsu X23-7783D Thermal Grease Syringes.

Memory Installation Notes

  1. Install DIMMs in the blue slots first.
  2. Install DIMMs in the white slots second.
  3. Install DIMMs in the black slots third.
  4. CPU0 and CPU1 require identical memory configurations.
  5. Each CPU supports one, two, or three DIMMs per socket color.
  6. Install the highest capacity DIMMs in the blue sockets, then white, then black.
  7. Memory Filler Panel 350-1288 was removed in September 2012. (E0012026)
  8. Memory Filler Panel requirements were removed from service label 7013716 Rev 05.
  9. Refer to the service manual for additional memory configuration information.

Sun Blade X6270 M3 Chassis Notes

  1. The X6270 M3 / X3-2B is supported in Sun Blade 6000 A90-B, and A90-D.
  2. The Sun Blade 6000 A90-A requires A90-B midplane upgrade A90-B-MP-UPGKIT.
  3. Midplane upgrade A90-B-MP-UPGKIT was announced as EOL in March 2011.
  4. The Sun Blade 6000 midplane can be obtained by purchasing the midplane spare.
  5. The Sun Blade 6000 midplane must be replaced by a qualified service provider.
  6. The X6270 M3 is not supported in Sun Blade 6000 A90-A or Sun Blade 6048.

References

  1. Sun Blade X6270 M3 Server Module Documentation.
