7015696
7015924
7047135
7047134

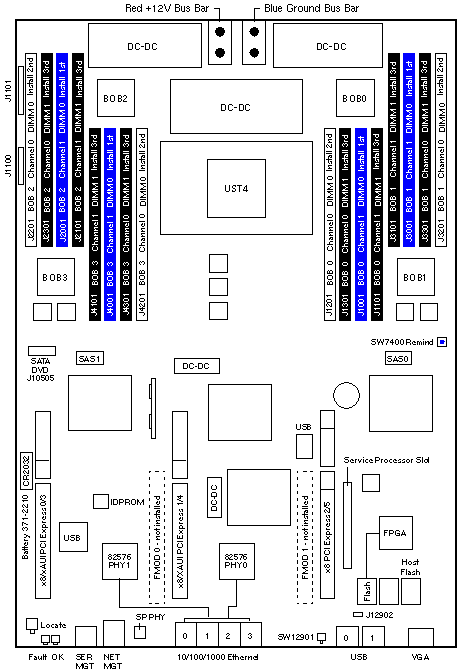

System Board
w/o UltraSPARC T4
System Board Assembly
8-Core 2.85GHz UltraSPARC T4
7015696 + Tray 350-1563
System Board
w/o UltraSPARC T4
System Board Assembly
8-Core 2.85GHz UltraSPARC T4
7047135 + Tray 350-1563
Jumpers and Switches
LOCATION
PINS
SETTING
DESCRIPTION
J12902
1-2
In
Default Setting
J12902
2-3
In
Clear Service Processor Password
SW1070
n/a
n/a
Locate Button
SW7400
n/a
n/a
Memory Fault Remind Button
SW12091
n/a
n/a
SP Physical Presense Detection
Notes
The minimum operating system is Solaris 10 09/10 with the complete Solaris 10 08/11 bundle.
Memory Installation Notes
Install the first four DIMMs in the blue slots.
Install the second four DIMMs in the white slots.
Install the last eight DIMMs in the black slots.
Install Memory Filler 350-1288 in all unused slots.
References
SPARC T4-1 Server Product Notes
SPARC T4-1 Server Installation Guide
SPARC T4-1 Server Service Manual
Hmm, you are using a very old browser. Click here to go directly to included content.
7015696
7022520
7042220
System Board
w/o UltraSPARC T4
8-Core System Board Assembly
2.85GHz UltraSPARC T4
4-Core System Board Assembly
2.85GHz UltraSPARC T4
Jumpers and Switches
LOCATION
PINS
SETTING
DESCRIPTION
J12902
1-2
In
Default Setting
J12902
2-3
In
Clear Service Processor Password
SW1070
n/a
n/a
Locate Button
SW7400
n/a
n/a
Memory Fault Remind Button
SW12091
n/a
n/a
SP Physical Presense Detection
Notes
The minimum operating system is Solaris 10 09/10 with the complete Solaris 10 08/11 bundle.
Memory Installation Notes
Install the first four DIMMs in the blue slots.
Install the second four DIMMs in the white slots.
Install the last eight DIMMs in the black slots.
Install DIMM Filler 350-1288 in all unused DIMM slots.
References
Netra SPARC T4-1 Server Product Notes
Netra SPARC T4-1 Server Installation Guide
Netra SPARC T4-1 Server Service Manual
