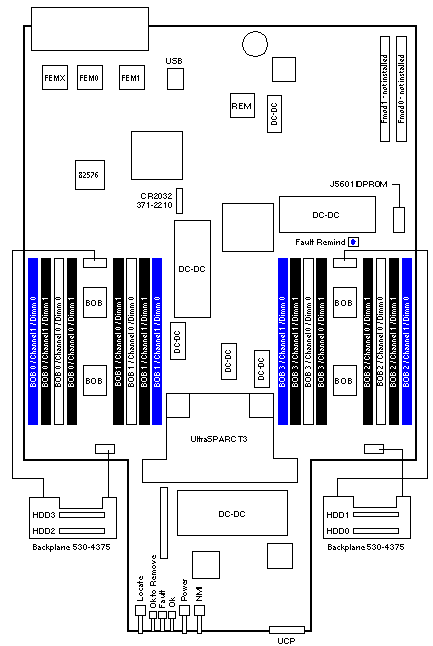

SPARC T3-1B System Board


511-1315 541-4245 541-4243 597-0747
System Board
w/o Enclosure
Inactive October 2011
System Board Assy
8-Core 1.65GHz
Inactive October 2011
System Board FRU
8-Core 1.65GHz
Inactive October 2011
8-Core 1.65GHz
Assembly 541-4197
T31B-AA181650
511-1315 541-3888 541-4197 597-0644
System Board
w/o Enclosure
Inactive October 2011
System Board Assy
16-Core 1.65GHz
Inactive October 2011
System Board FRU
16-Core 1.65GHz
Inactive October 2011
16-Core 1.65GHz
Assembly 541-4197
T6360-AA-1A1600
7027075 7027106 7027111 597-0747
System Board
w/o Enclosure
System Board Assy
8-Core 1.65GHz
System Board FRU
8-Core 1.65GHz
Pkg FRU 7027112
8-Core 1.65GHz
Assembly 541-4197
T31B-AA181650
7027075 7027087 7027108 597-0644
System Board
w/o Enclosure
System Board Assy
16-Core 1.65GHz
System Board FRU
16-Core 1.65GHz
Pkg FRU 7027109
16-Core 1.65GHz
Assembly 541-4197
T6360-AA-1A1600

SPARC T3-1B Codename: Jumilla

Notes

  1. The minimum Solaris OS is Solaris 10 10/09 with the complete Solaris 10 9/10 bundle.
  2. SAS-1 expanders require minimum firmware 5.04.03 before the T3-1B is installed.
  3. The prtdiag Chassis Serial Number is the Sun Blade 6000 serial number. (CR 6669159)
  4. Disk power and data cables are molded into Backplane Assembly 530-4375.

Chassis Notes

  1. The T3-1B is supported in Sun Blade 6000 A90-A, A90-B, and A90-D.
  2. Sun Blade 6000 Midplane 501-7376 supports PCI Express 1.1.
  3. Sun Blade 6000 Midplane 511-1298 and 511-1487 support PCI Express 2.0.
  4. The Sun Blade 6000 Midplane upgrade was A90-B-MP-UPGKIT.
  5. The last order date for A90-B-MP-UPGKIT was 03/14/11.
  6. The T3-1B is not supported in Sun Blade 6048.

Memory Installation Notes

  1. Install the first four DIMMs in the blue slots.
  2. Install the second four DIMMs in the white slots.
  3. Install the last eight DIMMs in the black slots.

References

  1. SPARC T3-1B Server Product Notes
  2. SPARC T3-1B Server Installation Guide
  3. SPARC T3-1B Server Service Manual
  4. SAS-1/SAS-2 Compatibility Upgrade Guide



Netra SPARC T3-1B System Board


511-1315 541-4197 7012896 7012509
System Board
w/o Enclosure
System Board Assembly
16-Core 1.65GHz
System Board Assembly
16-Core 1.65GHz
Pkg FRU 7012900
16-Core 1.65GHz
Assembly 7012896
Option 7100548

Netra SPARC T3-1B Codename: Netra Jumilla

Notes

  1. The minimum Solaris OS is Solaris 10 10/09 with the complete Solaris 10 9/10 bundle.
  2. Disk power and data cables are molded into Backplane Assembly 530-4375.
  3. The T3-1B is supported in the Netra 6000 M2.
  4. The T3-1B is not supported in the Netra 6000.

Memory Installation Notes

  1. Install the first four DIMMs in the blue slots.
  2. Install the second four DIMMs in the white slots.
  3. Install the last eight DIMMs in the black slots.

References

  1. Netra SPARC T3-1B Server Product Notes
  2. Netra SPARC T3-1B Server Installation Guide
  3. Netra SPARC T3-1B Server Service Manual
