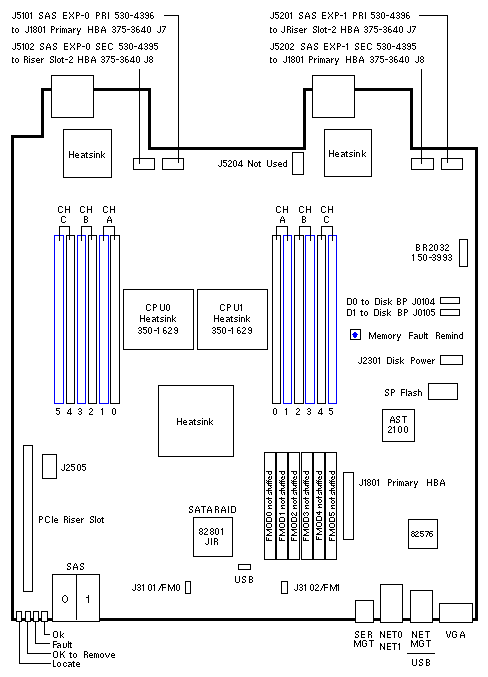

Oracle Database Appliance

511-1464 7026394 7039633 541-4117 541-4119
0MB Board
FAB 271-1464
0MB Board
FAB 271-1464
Replaced 511-1464
0MB Board
FAB 271-1464
Replaced 7026394
0MB Subassembly
w/o Processors
w/o Heatsinks
w/o Fans
w/o PCI Riser
0MB FRU
w/o Processors
with Fans
with PCI Riser
Pkg FRU F541-4119

Jumpers and Switches

LOCATION PINS SETTING DESCRIPTION
J602 1-2 Out Clear SP Password
J603 1-2 In SP Debug
J702 1-2 Out SP Disable
J2309 1-2 Out Not Documented
J2403 1-2 In BIOS Write Enable
J2601 1-2 Out Manufacturing Mode
J3208 1-2 In GPS
SW2401 N/A N/A Clear CMOS Button
SW3001 N/A N/A Fault Remind Button
Jumper locations are not illustrated. The default setting is listed.

Notes

  1. The Oracle Database Appliance codename was T4 and Comet.
  2. The Oracle Database Appliance and Sun Fire X4370 M2 are the same system.
  3. Use a 5/32" hex driver to remove and replace the CPU Heatsink.

Thermal Grease Notes

  1. The Intel X5675 FRU includes a Cleaning Wipe and X23-7783D Thermal Grease.
  2. The System Controller FRU includes two 250-1802 Cleaning Wipes and
    two 310-0065 Shin-Etsu X23-7783D Thermal Grease Syringes.
  3. Heatsink FRU F350-1629 includes one 250-1802 Cleaning Wipe.
    The Heatsink is pre-greased with Shin-Etsu X23-7783D.
    A Thermal Grease syringe is not included.

PCI Express Notes

  1. NIC 375-3617 is installed in PCI Express Riser Slot 0.
  2. NIC 375-3481 is installed in PCI Express Riser Slot 1.
  3. HBA 375-3640 is installed in PCI Express Riser Slot 2.
  4. HBA 375-3640 is installed in the System Controller Primary HBA Slot.
