QLogic SANbox 5602 Switch

371-0844	594-2295	594-2296
Switch FRU License Key for 8× 4Gbps Ports	SG-XSWQLG5602-8P Switch 371-0844 License Key for 8× 4Gbps Ports 8 Short Wave SFPs	SG-XSWQLG5602-20P Switch 371-0845 License Key for 16× 4Gbps Ports 4× 10Gbps Ports 16 SW 4Gbps SFPs

594-0609	594-2474
SG-XSWQLG5200-CBL 9" Cable 530-3369	SG-XSWQLG5200-RK-Z Rack Mount Option
852-2403	852-2404
SG-XSWQLG5602-UPG 4 Port License Key 4 SW 4Gbps SFPs	SG-XSWQLG5602-10UP 10Gbps License Key 3" Cable 530-3368

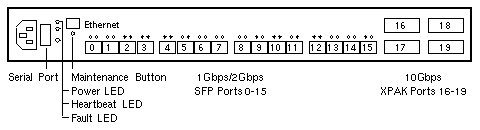

Front View

Table Legend

[C] = Customer Replaceable Unit (CRU) [F] = Field Replaceable Unit (FRU)

Additional Parts

PART #	DESCRIPTION
371-0848 [F]	Power Supply and Cooling Fan
373-0322 [C] 373-0323 [C]	78" X2 to XPAK Copper Cable, 18" X2 to XPAK Copper Cable,
373-0405 [C] 373-0406 [C]	X2 to XPAK Copper Cable, 2M (replaces 373-0322) X2 to XPAK Copper Cable, .46M (replaces 373-0323)
530-3368 [C] 530-3369 [C]	3" XPAK Cable, L 9" XPAK Cable, L
594-2116 371-0294 [C]	4GB Short Wave SFP Transceiver, Option XSFP-SW-4GB 4GB Short Wave SFP Transceiver,
594-2300 371-0294 [C]	4GB Short Wave SFP Transceiver, Option XSFP-SW-4GB-4PK 4GB Short Wave SFP Transceiver,
None	AC Power Cord, Qlogic WCL250

Notes

1. XPAK Transceivers are not included with the switch options.
2. Connect up to four switches with 3" and 9" XPAK Cables 530-3368 and 530-3369.
3. The Sanbox 5602 has two hot-swappable power supplies.

References

1. QLogic SANbox 5602 Documentation
2. SANbox 5600 Series Fibre Channel Switch Installation Guide, QLogic 59096-01.
3. SANbox 5600 Series Switch Management User's Guide, QLogic 59097-01.
