Sun Datacenter InfiniBand Switch 72
| Codename: Magnum 2 (NM2-72P) |

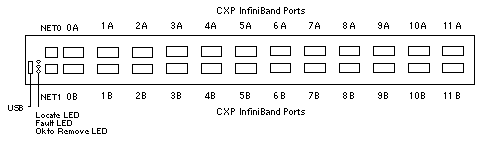

Front View
|
Rear View
|
| Table Legend |
|
[C] = Customer Replaceable Unit (CRU) |
Additional Parts
| PART # |
DESCRIPTION |
541-4268
300-2143
[C]
300-2233
[C]
350-1312 [C]
541-3804 [C]
511-1217
371-2210 [C] |
Data Center InfiniBand Switch 72
A237 760 Watt Power Supply,
A247 760 Watt Power Supply,
(WO_43346, 06/28/10)
Rear-to-Front Airflow Fan Module,
Data Center InfiniBand Switch 72 Subassembly
72-Port CXP Switch,
CR2032 Battery |
| 530-4345 |
10 Meter QDR 12x InfiniBand splitter cable, Option X2881-10M |
| 263-3923 |
Service Label |
| 560-2932 |
Rack Mount Kit, |
References
Data Center InfiniBand Switch 72 User Guide, 820-7751.
-
Data Center InfiniBand Switch 72 Command Reference, 820-7752.
-
Data Center InfiniBand Switch 72 Product Notes, 820-7753.
|
