Sun Datacenter Switch 648

Codename: Magnum M9

2800A-Z X2801A-Z X2802A-Z
Base Switch
Fabric Card + Fans
72-Port Line Card

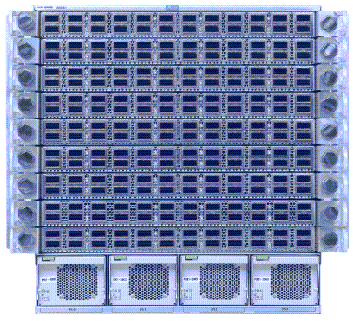

Front View

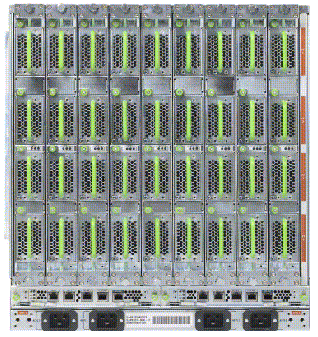

Rear View

Table Legend
[C] = Customer Replaceable Unit (CRU)
[R] = Replaceable Unit
  (either Field Replaceable Unit (FRU)
    or Customer Replaceable Unit (CRU)
    depending on the attached platform)

Additional Parts

PART # DESCRIPTION
597-0080
300-2133 [C]
541-3807 [C]
541-3811
540-7924 [C]
541-3748 [C]
541-3824 [C]
375-3623
541-3708
541-3808
Base Configuration
A234 2900 Watt Power Supply,
Chassis Management Controller (-04),
Fabric Card Assembly (-04),
Fabric Card (-04),
Fan Module (-02),
Chassis with Midplane,
Midplane,
Chassis,
Power Distribution Board Assembly,
350-1292 Line Card Filler, , Option X2809A-Z
530-2889 RJ45 to DB25 Serial Port Adapter,
530-3100 RJ45F to DB9F Adapter,
530-3623 Shielded RJ45 to RJ45 Cable, 4M,
540-7923 [C] Fabric Card Filler without Fan,
541-3810 [C] 72-Port Line Card, , Option X2802A-Z
541-3811 Fabric Card Assembly, Option X2801A-Z
541-3809
540-7923
541-3748
Fabric Card Filler Assembly, Option X2808A-Z
Fabric Card Filler
Fan Module
594-6272
594-6273
594-6274
594-6275
Cable Management Kit, Option X2812-BASE
Short Cable Support Kit, Option X2812-SUPPORTS
Medium Cable Support Kit, Option X2812-SUPPORTM
Long Cable Support Kit, Option X2812-SUPPORTL
530-4343 [R]
530-4344 [R]
530-4345 [R]
530-4347 [R]
10 Meter Optical QDR 12x InfiniBand cable, , Option X2880-10M
20 Meter Optical QDR 12x InfiniBand cable, , Option X2880-20M
10 Meter QDR 12x InfiniBand splitter cable, Option X2881-10M
20 Meter QDR 12x InfiniBand splitter cable, Option X2881-20M
180-2005
180-2004
180-2060
180-2061
180-2381
180-2382
NEMA L6-20P to IEC 320 C19 Power Cord, 4.0M, 180-2005, Option X6828A
Blue 16A IEC 309 to IEC 320 C19 Power Cord, 4.0M, 180-2004, Option X6829A
Blue 20A Watertight IEC 309 to IEC 320 C19 Power Cord, 4.0M, 180-2060, Option X6856A
Blue 16A Watertight IEC 309 to IEC 320 C19 Power Cord, 4.0M, 180-2061, Option X6859A
20A/250V 90 IEC 320 Sheet I to IEC 320 C19 Cord, 2M, 180-2381, Option XSR-JUMP-2MC19
20A/250V 90 IEC 320 Sheet I to IEC 320 C19 Cord, 1M, 180-2382, Option XSR-JUMP-1MC19

References

  1. Sun Datacenter Switch 648 Installation Guide
  2. Sun Datacenter Switch 648 Administration Guide
  3. Sun Datacenter Switch 648 Service Manual
  4. Sun Datacenter Switch 648 Command Reference
  5. Sun Datacenter Switch 648 Product Notes
