Sun Datacenter InfiniBand Switch 36

Codename: NM2-36 Port

If this unit is part of an Exadata V2, please reference the Sun System Handbook entry for Exadata V2

X2821A-Z
Switch Option

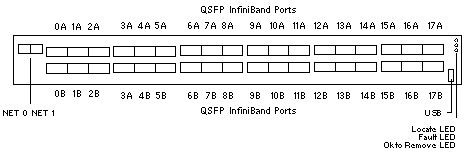

Front View
Rear View

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system

Additional Parts

PART # DESCRIPTION
541-4267
300-2143 [C]
300-2233 [C]
350-1312 [C]
350-1566
541-3495 [C]
350-1345
511-1312
511-1232
371-2210 [F]
530-4319
530-4320
Data Center InfiniBand Switch 36
A237 760 Watt Power Supply
A247 760 Watt Power Supply (WO_43346, 06/28/10)
Rear-to-Front Airflow Fan Module
Rear-to-Front Airflow Fan Module (E0000812 10/29/10)
Data Center InfiniBand Switch 36 Subassembly
Fan Module Filler Panel, FT0 and FT4
Fan Board
36-Port QSFP Switch
CR2032 Battery
Internal Power Cable
Internal Signal Cable
602-4758
300-2143 [C]
300-2233 [C]
300-2299 [C]
350-1312 [C]
350-1566
541-3495 [C]
350-1345
511-1312
511-1232
371-2210 [F]
530-4319
530-4320
Data Center InfiniBand Switch 36
A237 760 Watt Power Supply
A247 760 Watt Power Supply (WO_43346, 06/28/10)
A247A 760 Watt Power Supply (E0008323, 01/03/12)
Rear-to-Front Airflow Fan Module
Rear-to-Front Airflow Fan Module (E0000812 10/29/10)
Data Center InfiniBand Switch 36 Subassembly
Fan Module Filler Panel, FT0 and FT4
Fan Board
36-Port QSFP Switch
CR2032 Battery
Internal Power Cable
Internal Signal Cable
7052969
300-2299 [C]
350-1566
350-1312 [C]
7052970 [C]
350-1345
511-1312
7057247
371-2210 [F]
530-4319
530-4320
Data Center InfiniBand Switch 36
A247A 760 Watt Power Supply (E0008323, 01/03/12)
Rear-to-Front Airflow Fan Module (use 350-1312)
Rear-to-Front Airflow Fan Module
Data Center InfiniBand Switch 36 Subassembly
Fan Module Filler Panel, FT0 and FT4
Fan Board
36-Port QSFP Switch
CR2032 Battery
Internal Power Cable
Internal Signal Cable
350-1312 [C] Rear-to-Front Airflow Fan Module
560-2932 Rack Mount Kit
950-5798 Engineering Specification

References

  1. Datacenter InfiniBand Switch 36 User Guide, 820-7746.
  2. Datacenter InfiniBand Switch 36 Command Reference, 820-7747.
  3. Datacenter InfiniBand Switch 36 Product Notes, 820-7748.
  4. Datacenter InfiniBand Switch 36 Firmware Version 2.0 Documentation
