Sun Datacenter InfiniBand Switch Gateway

X2826A-Z
36-Port Switch Option

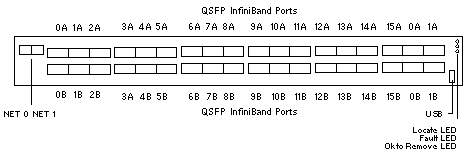

Front View

Rear View

Table Legend

[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [S] = Supported, but can no longer be ordered with this system

Additional Parts

PART # DESCRIPTION 541-4269 300-2143 [C] 300-2233 [C] 350-1566 350-1312 [C] Network QDR InfiniBand Gateway Switch (Replaced by 7014365) A237 760 Watt Power Supply A247 760 Watt Power Supply (WO_43346, 06/28/10) Rear-to-Front Airflow Fan Module 1 Rear-to-Front Airflow Fan Module 2 541-4188 [C] 350-1345 511-1312 511-1402 371-2210 [F] 530-4319 530-4320 InfiniBand Gateway Switch Subassembly Fan Module Filler Panel, FT0 and FT4 Fan Board Gateway Board CR2032 Battery Internal Power Cable Internal Signal Cable 7014378 350-1345 511-1312 7014379 371-2210 [F] 530-4319 530-4320 InfiniBand Gateway Switch Subassembly Fan Module Filler Panel, FT0 and FT4 Fan Board Gateway Board CR2032 Battery Internal Power Cable Internal Signal Cable 7014365 300-2233 [C] 300-2299 [C] 350-1566 350-1312 [C] Network QDR InfiniBand Gateway Switch (E0003216) A247 760 Watt Power Supply A247A 760 Watt Power Supply (E0008323, 01/03/12) Rear-to-Front Airflow Fan Module 1 Rear-to-Front Airflow Fan Module 7014376 [C] 350-1345 511-1312 7014379 371-2210 [F] 530-4319 530-4320 InfiniBand Gateway Switch FRU (PKG 7044789) (E0003216) Fan Module Filler Panel, FT0 and FT4 Fan Board Gateway Board (E0003216) CR2032 Battery Internal Power Cable Internal Signal Cable 263-3923 Service Label 382-4188 Assembly Drawing 560-2932 Rack Mount Kit 950-6033 Engineering Specification

1 Fan 350-1566 is not a FRU (use 350-1312) 2 Fan 350-1312 was used from August to October 2010. (Deviation WO_43721)
