Network 10Gigabit Ethernet Switch 72p

Codename: OPUS TOR

X2074A-F X2074A-R
Switch Option
Front to Rear Airflow
Switch Option
Rear to Front Airflow

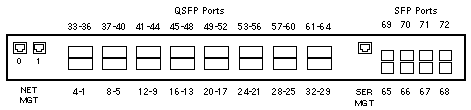

Front View
Table Legend
[C] = Customer Replaceable Unit (CRU)
[F] = Field Replaceable Unit (FRU)

PART # DESCRIPTION
599-3578
541-3765 [C]
150-1204 [F]
511-1287
7047497
511-1381
7047498
511-1289
7047964
530-4336
7014110
530-4337
300-2143 [C]
300-2233 [C]
300-2299 [C]
350-1335 [C]
Front-to-Rear Airflow Switch, Option X2074A-F
72-Port Network 10GE Switch Assembly
CR1225 3V Lithium Battery,
Fan Board,
Fan Board (E0004590)
Motherboard
Motherboard Assembly (E0004590)
Main Board
Main Board (E0004590)
Fan Ribbon Cable,
Fan Ribbon Cable (E0004590)
Fan Power Cable,
A237 760 Watt Power Supply,
A247 760 Watt Power Supply,
A247A 760 Watt Power Supply (E0010849)
Front-to-Rear Airflow Fan Module
599-3727
541-3765 [C]
150-1204 [F]
511-1287
7047497
511-1381
7047498
511-1289
7047964
530-4336
7014110
530-4337
300-2143 [C]
300-2233 [C]
300-2299 [C]
350-1312 [C]
Rear-to-Front Airflow Switch, Option X2074A-R
72-Port Network 10GE Switch Assembly
CR1225 3V Lithium Battery,
Fan Board,
Fan Board (E0004590)
Motherboard
Motherboard Assembly (E0004590)
Main Board
Main Board (E0004590)
Fan Ribbon Cable,
Fan Ribbon Cable (E0004590)
Fan Power Cable,
A237 760 Watt Power Supply,
A247 760 Watt Power Supply,
A247A 760 Watt Power Supply (E0010849)
Rear-to-Front Airflow Fan Module,

Battery Replacement Notes

  1. Remove the switch from the rack.
  2. Remove the mounting brackets from the switch.
  3. Remove the ten screws on the sides of the top cover.
  4. Remove the six screws on the top of the top cover.
  5. Remove the top cover. The battery is in front of Power Supply 0.
  6. Reverse these procedures to replace the switch in the rack.

References

  1. Sun Network 10GbE Switch 72P User's Guide
  2. Sun Network 10GbE Switch 72P Product Notes
