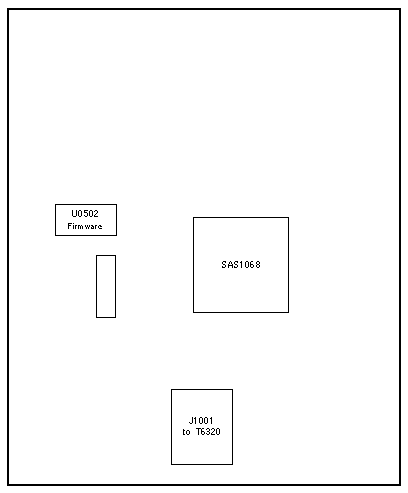

RAID Expansion Module

Codename: Jackal

Servers: Sun Blade T6320

Option X4601A

501-7821
REM

Notes

  1. Patch 138445-01 updates LSI SAS1068 firmware to 1.20.0. (fixes BugID 6706446)
  2. Sun Blade 6000 Disk Module and Sun Blade 6000 Multi-Fabric Network Express
    Module require Patch 138445-02. Patch 138445-02 is included on 501-7821-07.
  3. Patch 138445-03 fixes PHY lockup (BugID 6839770) and is on 501-7821-08.
  4. Option X4601A is not supported with the T6320+ (Glendale+) .

References

  1. Sun Blade T6320 Product Notes, 820-2383.
  2. Sun Blade T6320 Installation Guide, 820-2384.
  3. Sun Blade T6320 Service Manual, 820-2386.
  4. ILOM 2.0 User's Guide, 820-1188.
  5. ILOM 2.0 Supplement for Sun Blade T6320, 820-2546.

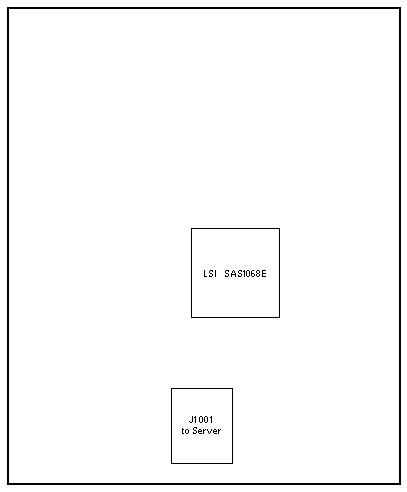

RAID Expansion Module

Codename: Jackal2

Servers: Sun Blade T6320, T6340
Sun Blade X6240, X6270, X6270 M2, X6440, X6450
Telco Systems: Netra X6270 M2

Option X4607A

511-1098
REM

Notes

  1. Sun Blade X6450-AA 540-7595 is not supported. Sun Blade X6450-AB 540-7821 is required.

References

  1. Sun Blade G2 RAID 0/1 Expansion Module Installation Guide, 820-5448.
