16-Slot Disk Backplane

511-1372 7020814
FAB 271-1372
Pkg FRU F511-1372
FAB 271-1372
Pkg FRU 7020820

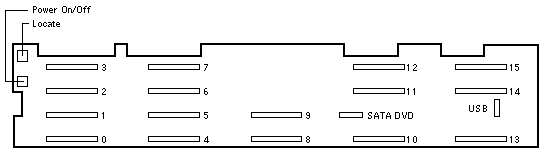

Front View

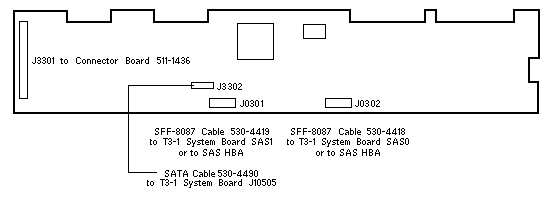

Rear View

SPARC T3-1 Codename: Serpa

Notes

  1. Cable Kit 560-2959 includes 530-4418, 530-4419, and 530-4490.
  2. Use care when removing 530-4490 from J3302. The connector is easily damaged.
  3. Backplane 511-1372 does not support zoning. Backplane 7020814 supports zoning.
  4. Patch 147034-01 and T3-1 Patch 147315-03 add zoning support to 511-1372.
  5. Backplane 7020814 is equal to 511-1372 with Patch 147034-01.

References

  1. SPARC T3-1 Server Product Notes
  2. SPARC T3-1 Server Installation Guide
  3. SPARC T3-1 Server Service Manual
