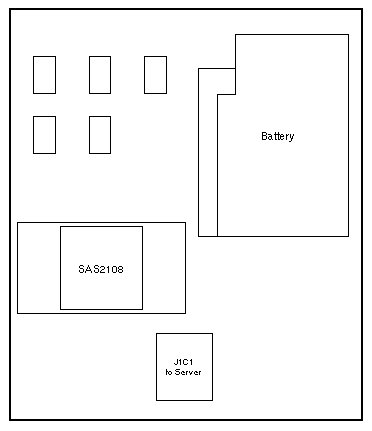

6Gbps SAS-2 RAID Expansion Module

Codename: Niwot-REM

Option SGX-SAS6-R-REM-Z

371-4746 375-3647-02
Lithium Ion Battery
BBU07
LSI L3-25241-xx
B2 Liberator ASIC
371-4982 375-3647-03
Lithium Ion Battery
BBU07
LSI L3-25241-xx
B4 Liberator ASIC

Notes

  1. The minimum Solaris operating system is Solaris 10 10/09.
  2. 8-Port SAS REM supports RAID Levels 0, 1, 5, 6, 10, 50, and 60.
  3. The 8-Port SAS REM was released in March 2010. (WO_42793)
  4. The REM changed from 375-3647-02 to 375-3647-03,
    and the battery changed from 371-4746 to 371-4982 in September 2010. (WO_43637)
    Battery 371-4982 allows the operational range of the REM to increase from 45C to 55C.
  5. The SB6000 CMM requires SW 3.2.1 when T6320, T6340, or X6270 M2 are
    used with REM 375-3647 and SB6000 Storage Module M2.

References

  1. Sun Storage 6 Gb SAS REM RAID HBA Documentation.

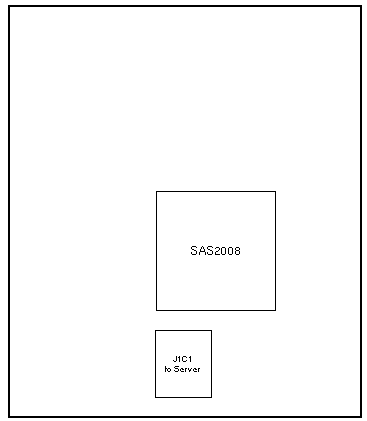

6Gbps SAS-2 RAID Expansion Module

Codename: Erie-REM

Option SGX-SAS6-REM-Z

375-3643
LSI H3-25287-xx

Notes

    The minimum Solaris operating system is Solaris 10 10/09.
  1. 8-Port SAS REM supports RAID Levels 0, 1, and 10.
  2. The 8-Port SAS REM was released in March 2010. (WO_42751)
  3. The SB6000 CMM requires SW 3.2.1 when T6320 or T6340 are
    used with REM 375-3643 and SB6000 Storage Module M2.
  4. The X6270 M2 requires SW 3.2.2 when used with REM 375-3643.

References

  1. Sun Storage 6 Gb SAS REM HBA Documentation.
