4-8GB 4 mm DDS-2 Tape Drive
| Workstations: |
Ultra 1, 1E, 2 |
| Servers: |
SPARCserver 1000
Enterprise 150, 3x00, 4x00, 5x00, 6x00 |
Options 6253 / 6254 / 6255 / 6256 / 6259 / 6260
| 370-2176 |
370-2177 |
370-2178 |
Conner CTD8000
Light Grey Bezel |
Conner CTD8000
Medium Grey Bezel |
Conner CTD8000
SS1000 Bezel |

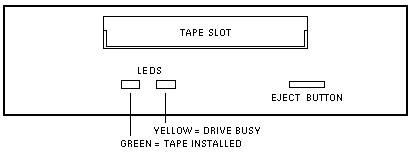

| Front View |
 |
|

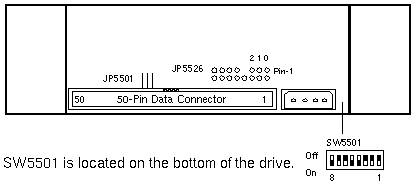

| Rear View |
 |
Notes
- The minimum operating system is Solaris 1.1.1 or Solaris 2.3.
- The Blank DDS-2 120 Meter Tape part number is 370-2181-01.
- The Cleaning Kit part number is 370-1613-01.
- The Bezel Kit part number is 555-1339.
Reference
DDS-2 Tape Drive Specification, 802-5324.
Jumper and Switch Settings
JP5501
| PIN |
SETTING |
DESCRIPTION |
| 1-2 |
Out |
Not used |
| 2-3 |
Out |
Not used |
|
|
JP5526
| PIN |
SETTING |
DESCRIPTION |
| 1-2 |
As required |
Enable SCSI ID 0 = 20 |
| 3-4 |
As required |
Enable SCSI ID 1 = 21 |
| 5-6 |
As required |
Enable SCSI ID 2 = 22 |
| 8-10 |
Out |
Self test |
| 11-12 |
Out |
Active termination |
| 13-14 |
Out |
Reserved |
| 15-16 |
Out |
TERMPWR |
|
|
SW5501
| SWITCH |
SETTING |
DESCRIPTION |
| 1 |
Off |
Enable SCSI ID 0 = 20 |
| 2 |
Off |
Enable SCSI ID 1 = 21 |
| 3 |
Off |
Enable SCSI ID 2 = 22 |
| 4 |
On |
Enable SCSI-2 mode |
| 5 |
On |
Enable Parity |
| 6 |
Off |
Enable data compression |
| 7 |
Off |
Reserved for factory use |
| 8 |
On |
Enable self test |
|
Options 6261 / 6262 / 6263 / 6264 / 6265
TAP4MM-010A / TAP4MM-020A
| 370-2375 |
Seagate STD18000N
Light Grey Bezel |

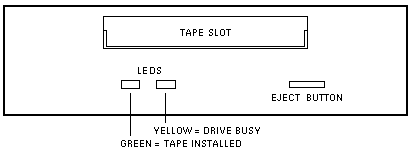

| Front View |
 |
|

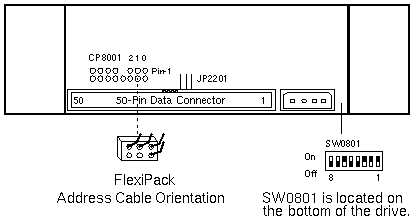

| Rear View |
 |
Notes
- The minimum operating system is Solaris 1.1.1 or Solaris 2.3.
- The Blank DDS-2 120 Meter Tape part number is 370-2181-01.
- The Cleaning Kit part number is 370-1613-01.
Reference
-
DDS-2 Tape Drive Specification, 802-7790.
Jumper and Switch Settings
JP2201
| PIN |
SETTING |
DESCRIPTION |
| 1-2 |
Out |
Not used |
| 2-3 |
Out |
Not used |
|
|
CP8001
| PIN |
SETTING |
DESCRIPTION |
| 1-2 |
As required |
Enable SCSI ID 0 = 20 |
| 3-4 |
As required |
Enable SCSI ID 1 = 21 |
| 5-6 |
As required |
Enable SCSI ID 2 = 22 |
| 7-8 |
n/a |
Reserved |
| 9-10 |
Out |
Reserved |
| 11-12 |
Out |
Active termination disabled |
| 13-14 |
Out |
Reserved |
| 15-16 |
Out |
TERMPWR disabled |
|
|
SW0801
| SWITCH |
SETTING |
DESCRIPTION |
| 1 |
Off |
Enable SCSI ID 0 = 20 |
| 2 |
Off |
Enable SCSI ID 1 = 21 |
| 3 |
Off |
Enable SCSI ID 2 = 22 |
| 4 |
On |
Allow non-MRS tapes |
| 5 |
On |
Enable parity |
| 6 |
Off |
Enable data compression |
| 7 |
On |
Enable datmon upon power on |
| 8 |
On |
Enable self test |
|
|
