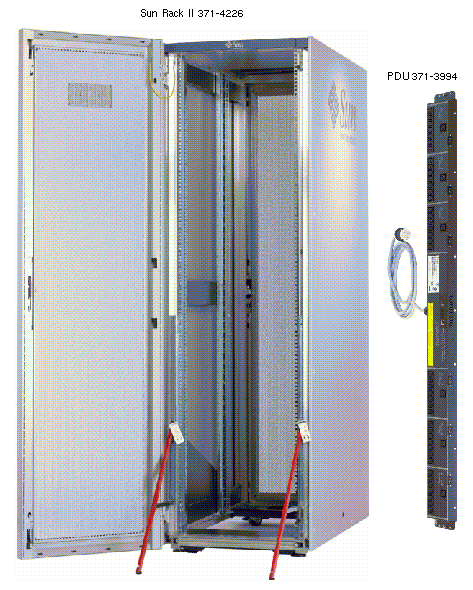

Sun Rack II

RETMA Rail Mounting Screw Size unthreaded 9.5mm x 9.5mm square hole

Codename: Redwood



Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported but can no longer be ordered

PART # DESCRIPTION
594-5592
371-4226
None
None
Rack with Light Duty Pallet, Option XSR-1242 1
42U-1200 Rack
Front/Rear Door Key (same key pattern as 240-4254)
Side Panel Key
594-5593
371-4226
None
None
Rack with Heavy Duty Pallet, Option XSR-1242E 1
42U-1200 Rack
Front/Rear Door Key (same key pattern as 240-4254)
Side Panel Key
594-5897
371-4471
None
None
Rack with Light Duty Pallet, Option XSR-1042 2
42U-1000 Rack
Front/Rear Door Key (same key pattern as 240-4254)
Side Panel Key
594-5898
371-4471
None
None
Rack with Heavy Duty Pallet, Option XSR-1042E 2
42U-1000 Rack
Front/Rear Door Key (same key pattern as 240-4254)
Side Panel Key
599-3667
594-5593
371-4226
Sun Oracle Database Machine Rack, Option R1242-AA
Rack with Heavy Duty Pallet
42U-1200 Rack
594-5614
540-7758
540-7750
540-7760
Option XRACK_FILLERPANELS
1U Filler Panel
2U Filler Panel
4U Filler Panel
590-1194
330-5319
8-Pack 1U Filler Panel Option 7100497
1U Filler Panel, 1-Pack 1U Filler Panel Option 7104147
594-6404
371-4644 [C]
Option XSR-5K-L630CP
5KVA Single-Phase PDU
    with one 30A/250V 2-Pole/3-Wire NEMA L6-30P Plug 1
594-6405
371-4645 [C]
Option XSR-5K-IEC309CP
5KVA Single-Phase PDU
    with one Blue 32A/240V Splashproof 2-Pole/3-Wire IEC 60309 Plug
    with Ground at 6 o'clock 3
Sun Rack II for Storage 6000 Modular Array
596-7837
None
None
None
371-4443 [F]
Four PDU Rack Option TA6000-RK2-1242AI
42U-1200 Rack
Front/Rear Door Key (same key pattern as 240-4254)
Side Panel Key
Single-Phase PDU with one Blue 32A/240V Splashproof
    2-Pole/3-Wire IEC 60309 Plug with Ground at 6 o'clock
596-7838
None
None
None
371-4442 [F]
Four PDU Rack Option TA6000-RK2-1242AD
42U-1200 Rack
Front/Rear Door Key (same key pattern as 240-4254)
Side Panel Key
Single-Phase PDU with one 30A/250V 2-Pole/3-Wire
    NEMA L6-30P Plug
594-5795
371-4442 [F]
Option XTA6000-RK2-PDUAD [S]
Single-Phase PDU with one 30A/250V 2-Pole/3-Wire
    NEMA L6-30P Plug 4
594-5857
371-4443 [F]
Option XTA6000-RK2-PDUAI [S]
Single-Phase PDU with one Blue 32A/240V Splashproof
    2-Pole/3-Wire IEC 60309 Plug with Ground at 6 o'clock 4
594-5885
540-7796
341-4881
Option XTA6000-RK2-RAIL
Mounting Rail Kit
Mounting Rail
Sun Rack II 1042 and 1242 Documentation

1 The 42U-1200 Rack is available with single-phase or three phase AC input power.
2 The 42U-1000 Rack is only available with single-phase AC input power.
3 These Compact PDU's include two single-phase 20A 200-240V output groups with one
IEC 320 Sheet J and seven IEC 320 Sheet F connectors per group.
4 Includes two single-phase 20A 200-240V output groups with six IEC 320 Sheet F
connectors per group.

Power Distribution Units

PART # DESCRIPTION
594-5594
371-3994 [C]
Option XSR-5K-L630
5KVA Single-Phase PDU
    with one 30A/250V 2-Pole/3-Wire NEMA L6-30P Plug 1
594-5595
371-3995 [C]
Option XSR-15K-IEC309-4P
15KVA Three-Phase PDU
    with one Blue 60A/250V Watertight 3-Pole/4-Wire IEC 60309 Plug
    with Ground at 9 o'clock 1
594-5596
371-3996 [C]


371-4510 [C]
Option XSR-24K-IEC309-4P
24KVA Three-Phase PDU
    with two Blue 60A/250V Watertight 3-Pole/4-Wire 6-AWG IEC 60309 Plugs
    with Ground at 9 o'clock 1
24KVA Three-Phase PDU
    with two Blue 60A/250V Watertight 3-Pole/4-Wire 8-AWG IEC 60309 Plugs
    with Ground at 9 o'clock 1
594-5597
371-3997 [C]


371-4511 [C]
Option XSR-37K-IEC309-4P
37KVA Three-Phase PDU
    with three Blue 60A/250V Watertight 3-Pole/4-Wire 6-AWG IEC 60309 Plugs
    with Ground at 9 o'clock 2
37KVA Three-Phase PDU
    with three Blue 60A/250V Watertight 3-Pole/4-Wire 8-AWG IEC 60309 Plugs
    with Ground at 9 o'clock 2
594-5598
371-3999 [C]
Option XSR-5K-IEC309
5KVA Single-Phase PDU
    with one Blue 32A/240V Splashproof 2-Pole/3-Wire IEC 60309 Plug
    with Ground at 6 o'clock 1
594-5599
371-4000 [C]
Option XSR-15K-IEC309-5P
15KVA Three-Phase PDU
    with one Red 32A/220-240V Splashproof 4-Pole/5-Wire IEC 60309 Plug
    with Ground at 6 o'clock 3
594-5600
371-4001 [C]
Option XSR-24K-IEC309-5P
24KVA Three-Phase PDU
    with two Red 32A/220-240V Splashproof 4-Pole/5-Wire IEC 60309 Plugs
    with Ground at 6 o'clock 3
594-5601
371-4002 [C]
Option XSR-37K-IEC309-5P
37KVA Three-Phase PDU
    with three Red 32A/220-240V Splashproof 4-Pole/5-Wire IEC 60309 Plugs
    with Ground at 6 o'clock 4
594-5602
371-4198 [C]
Option XSR-10K-L630
10KVA Single-Phase PDU
    with two 30A/250V 2-Pole/3-Wire NEMA L6-30P Plugs 1
594-5603
371-4199 [C]
Option XSR-15K-L630
15KVA Single-Phase PDU
    with three 30A/250V 2-Pole/3-Wire NEMA L6-30P Plugs 1
594-5604
371-4200 [C]
Option XSR-10K-IEC309
10KVA Single-Phase PDU
    with two Blue 32A/240V Splashproof 2-Pole/3-Wire IEC 60309 Plugs 1
594-5605
371-4201 [C]
Option XSR-15K-IEC309
15KVA Single-Phase PDU
    with three Blue 32A/240V Splashproof 2-Pole/3-Wire IEC 60309 Plugs 1
371-4442 [F] Single-Phase PDU with one 30A/250V 2-Pole/3-Wire
    NEMA L6-30P Plug 1
371-4443 [F] Single-Phase PDU with one Blue 32A/240V Splashproof
    2-Pole/3-Wire IEC 60309 Plug with Ground at 6 o'clock 1
594-5606
180-2379 [C]
180-2380 [C]
180-2381 [C]
180-2382 [C]
Option XSR-JUMPKIT
13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M
13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M
20A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 2M
20A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 1M
594-5607
180-2379 [C]
Option XSR-JUMPPAC-1MC13
13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M
594-5608
180-2380 [C]
Option XSR-JUMPPAC-2MC13
13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M
594-5609
180-2379 [C]
Option XSR-JUMP-1MC13
13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M
594-5610
180-2382 [C]
Option XSR-JUMP-1MC19
20A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 1M
594-5611
180-2380 [C]
Option XSR-JUMP-2MC13
13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M
594-5612
180-2381 [C]
Option XSR-JUMP-2MC19
20A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 2M
None
180-2442 [C]
Option X333V-20-15-C14
20A/250V IEC 320 Sheet I to IEC 320 C19 Cord, 2M
None
180-2443 [C]
Option X333V-30-15-C14
20A/250V IEC 320 Sheet I to IEC 320 C19 Cord, 3M
594-6830
371-4976 [C]
Option XSR-15KIEC309-U5P
15KVA Three-Phase PDU with one Red 32A/220-240V Splashproof
4-Pole/5-Wire IEC 60309 Plug with Ground at 6 o'clock 5
594-6831
371-4977 [C]
Option XSR-24KIEC309-U5P
24KVA Three-Phase PDU with two Red 32A/220-240V Splashproof
4-Pole/5-Wire IEC 60309 Plugs with Ground at 6 o'clock 5
594-6832
371-4978 [C]
Option XSR-37KIEC309-U5P
37KVA Three-Phase PDU with three Red 32A/220-240V Splashproof
4-Pole/5-Wire IEC 60309 Plugs with Ground at 6 o'clock 6
594-6898
371-5039 [C]
Exadata/Exalogic Option 7100873 (for factory installation)
22KVA Single-Phase PDU with three 50A/220-240V 2-Pole/3-Wire
Hubbell CS8265C Plugs 5
594-6899 Exadata/Exalogic Option 7100874 (for factory installation)
597-1222
371-5040 [C]
Sun Rack II Option 7100265 (for factory installation)
22KVA Single-Phase PDU with three Blue 32A/220-240V Splashproof
2-Pole/3-Wire IEC 60309 Plugs with Ground at 6 o'clock 5
  1. Includes six single-phase 20A 200-240V output groups
    with one IEC 320 Sheet J and seven IEC 320 Sheet F connectors per group.
  2. Includes nine single-phase 20A 200-240V output groups
    with one IEC 320 Sheet J and five IEC 320 Sheet F connectors per group.
  3. Includes six single-phase 20A 220-240V output groups
    with one IEC 320 Sheet J and seven IEC 320 Sheet F connectors per group.
  4. Includes nine single-phase 20A 220-240V output groups
    with one IEC 320 Sheet J and five IEC 320 Sheet F connectors per group.
  5. Includes six single-phase 20A 220-240V output groups with one IEC 320 Sheet J and
    seven IEC 320 Sheet F connectors per group. Meets UL60950-1 2nd Edition.
  6. Includes nine single-phase 20A 220-240V output groups with one IEC 320 Sheet J and
    five IEC 320 Sheet F connectors per group. Meets UL60950-1 2nd Edition.
