SPARCprinter Printer Card
Sun-4/15/30/40/50/60/65/75
SS5 / SS10 / SS20 / SS600 / SS1000 / SC2000
A11 / A12 / A14
Options 1130 / SPRN-400
501-1540 / 501-1910
Power:
- 0.9 Amps @ +5Vdc
- 4.5 Watts
Notes
- The minimum operating system requirement is SunOS 4.1.
- NeWSprint is not supported in Solaris 2.6.
- The Sun-4/60 requires CPU EPROM 1.3 Version 3.
- One-piece Backpanel 340-2302-01 does not fit on 501-1910.
- Two-piece Backpanel 340-2302-02 does not fit on 501-1540.
- Two-piece Backpanel 340-2964-01 does not fit on 501-1910.
- Use two-piece Backpanel 340-2964-01 on 501-1540 if removal
of the upper part of the backpanel is required.
- This card is not compatible with Slot-3 of the Sun-4/60/65.
Reference:
- SBus Printer Card Installation Guide, 800-4786.

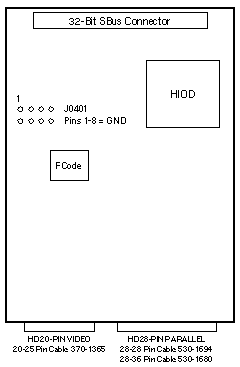

Connector Pinouts
|
HD20-Pin Female Video Connector |
| PIN |
SIGNAL |
PIN |
SIGNAL |
| 1 |
VCLK+ |
11 |
VCLK- |
| 2 |
LSYNC+ |
12 |
LSYNC- |
| 3 |
STATUS+ |
13 |
STATUS- |
| 4 |
PSYNC+ |
14 |
PSYNC- |
| 5 |
Do not use |
15 |
Do not use |
| 6 |
Do not use |
16 |
Do not use |
| 7 |
Do not use |
17 |
Do not use |
| 8 |
CBUSY- |
18 |
CBUSY+ |
| 9 |
CMD+ |
19 |
CMD- |
| 10 |
VDATA+ |
20 |
VDATA- |
|
 |
|
HD28-Pin Female Parallel Connector |
| PIN |
SIGNAL |
PIN |
SIGNAL |
| 1 |
DATA 0 |
15 |
Do not use |
| 2 |
DATA 1 |
16 |
Do not use |
| 3 |
DATA 2 |
17 |
Do not use |
| 4 |
DATA 3 |
18 |
Do not use |
| 5 |
DATA 4 |
19 |
Do not use |
| 6 |
DATA 5 |
20 |
GND |
| 7 |
DATA 6 |
21 |
GND |
| 8 |
DATA 7 |
22 |
Do not use |
| 9 |
GND |
23 |
GND |
| 10 |
DS |
24 |
GND |
| 11 |
BUSY |
25 |
ACK |
| 12 |
RESET |
26 |
OUT/IN |
| 13 |
AFXT |
27 |
PE |
| 14 |
SELECT |
28 |
ERROR |
|
 |
|
