Front Indicator Module

511-1466 541-4139 7019283

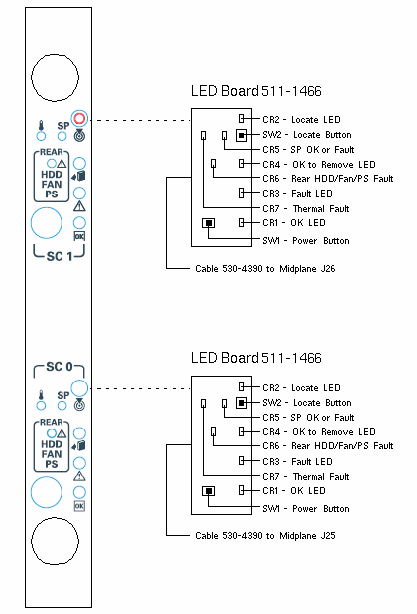

LED Board Front Indicator Module
LED Board 511-1466
Light Pipe 330-5233
Power Button 330-5234
FIM and Cable Kit
Cable 530-4390
FIM 541-4139
Pkg FRU F541-4139

Notes

  1. Kit 7019283 includes one 541-4139 FIM and one 530-4390 Cable.
  2. The system includes two 541-4139 FIMs and two 530-4390 Cables.
  3. The Left Front Bezel does not have a Sun/Oracle part number.
  4. Cable Cover T4-341-P018 does not have a Sun/Oracle part number.
  5. Kapton tape is used to fasten the two 530-4390 cables together.
  6. Kapton tape is used to attach the two 530-4390 cables to the chassis.
  7. Use a #1 Philips driver to service three screws on the rear of the bezel.
  8. Due to limited space in the disk drive bays (4" / 104mm) use a right angle #1 Phillips driver to service four screws on the side of the bezel. A ratcheting type such as a Chapman CM-13 or Craftsman 9-41469 is recommended.
