Workstation: Ultra 27

Options 3914A / 3915A / 3916A

371-4518 371-4519 371-4520
DDR3-1066/PC3-8500
1-Rank/1Gbit SDRAM

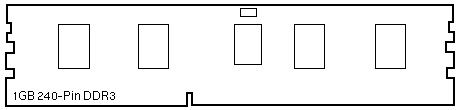

1GB Unbuffered DIMM
1GB Option 3916A
DDR3-1066/PC3-8500
2-Rank/1Gbit SDRAM

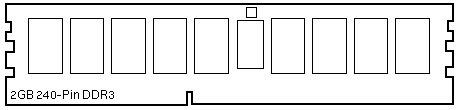

2GB Unbuffered DIMM
2GB Option 3915A
DDR3-1333/PC3-10600
2-Rank/1Gbit SDRAM
2GB Unbuffered DIMM
2GB Option 3914A

Ultra 27 Codename: Volans

Memory Installation Notes

  1. DIMM speed is limited by the CPU QuickPath Interconnect (QPI) speed.
  2. The minimum configuration is a single 1GB DIMM in Slot 1.
  3. A single 2GB DIMM configuration is not supported.
  4. A medium configuration is a DIMM in Slot 1, Slot 3, and Slot 5.
  5. The maximum configuration is a DIMM in all six slots.

References

  1. Sun Ultra 27 Workstation Documentation.
