Workstations: Ultra 20 M2, Ultra 24
Servers: Sun Fire X2100 M2
Disk Arrays: StorageTek 5800

Options 5277A-Z / 5278A-Z / 5278A-A / 5279A-Z

371-1998 371-1999 371-4144 371-2000

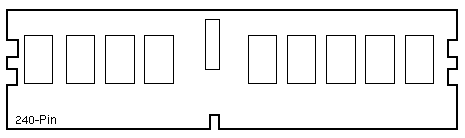

DDR2-667/PC2-5300
CL5/ECC/Unbuffered
1-Rank/512Mbit SDRAM
512MB Unregistered DIMM
1GB FRU F540-7058
1GB Option 5277A-Z
DDR2-667/PC2-5300
CL5/ECC/Unbuffered
2-Rank/512Mbit SDRAM
1GB Unregistered DIMM
2GB FRU F540-7059
2GB Option 5278A-Z
DDR2-667/PC2-5300
CL5/ECC/Unbuffered
1-Rank/1Gbit SDRAM
1GB Unregistered DIMM
2GB FRU F540-7778
2GB Option 5278A-A
DDR2-667/PC2-5300
CL5/ECC/Unbuffered
2-Rank/1Gbit SDRAM
2GB Unregistered DIMM
4GB FRU F540-7060
4GB Option 5279A-Z

Ultra 20 M2 Codename: Munich
Ultra 24 Codename: Ursa
Sun Fire X2100 M2 Codename: Leo
StorageTek 5800 Codename: Honeycomb

Ultra 20 M2 Notes

  1. Install the first DIMM pair in slots DIMM 2 and DIMM 3.
  2. Install the second DIMM pair in slots DIMM 0 and DIMM 1.

Ultra 24 Notes

  1. Install the first DIMM pair in slots DIMM 1 and DIMM 3.
  2. Install the second DIMM pair in slots DIMM 0 and DIMM 2.

Sun Fire X2100 M2 Notes

  1. Install memory beginning at DIMM 0 and ending at DIMM 3.
  2. Install the first DIMM pair in slots B0D0 and B0D1.
  3. Install the second DIMM pair in slots B0D2 and B0D3.

References

  1. Sun Ultra 20 M2 Workstation Documentation.
  2. Sun Ultra 24 Workstation Documentation.
  3. Sun Fire X2100 M2 Server Documentation.
