Sun Fire X4600
StorageTek 5220 NAS / 5320 NAS

Options 8120A-Z / 8121A-Z

371-1096	371-1097

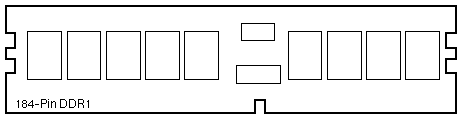

DDR1-400/PC3200 ECC 1GB Registered DIMM 2GB FRU F541-1430 2GB Option 8120A-Z	DDR1-400/PC3200 ECC 2GB Registered DIMM 4GB FRU F541-1431 4GB Option 8121A-Z

Sun Blade X8400

Options 5090A-Z / 5091A-Z / 5092A-Z

371-1096	371-1097	371-1460
DDR1-400/PC3200 ECC 1GB Registered DIMM 2GB FRU F541-1430 No SB8000 Option Early production	DDR1-400/PC3200 ECC 2GB Registered DIMM 4GB FRU F541-1431 No SB8000 Option Early production	DDR1-400/PC3200 ECC 4GB Registered DIMM 8GB FRU F540-6838 No SB8000 Option Early production
371-1762	371-1763	371-1824
DDR1-400/PC3200 ECC 1GB Registered DIMM 2GB FRU F541-2038 2GB Option 5090A-Z	DDR1-400/PC3200 ECC 2GB Registered DIMM 4GB FRU F541-2037 4GB Option 5091A-Z	DDR1-400/PC3200 ECC 4GB Registered DIMM 8GB FRU F541-2036 8GB Option 5092A-Z

---

Sun Blade X8420 / X8440

Options 5093A-Z / 5094A-Z / 5095A-Z / 5094A-C

371-2353	371-2354	371-2355	371-4137

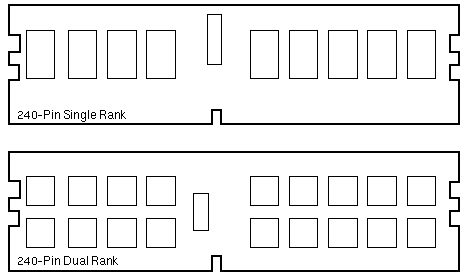

DDR2-667/PC5300 ECC 1GB Registered DIMM 1-Rank/512Mbit SDRAM 2GB FRU F540-7226 2GB Option 5093A-Z	DDR2-667/PC5300 ECC 2GB Registered DIMM 2-Rank/512Mbit SDRAM 4GB FRU F540-7227 4GB Option 5094A-Z	DDR2-667/PC5300 ECC 4GB Registered DIMM 2-Rank/1Gbit SDRAM 8GB FRU F540-7228 8GB Option 5095A-Z	DDR2-667/PC5300 ECC 2GB Registered DIMM 1-Rank/1Gbit SDRAM 4GB FRU F540-7840 4GB Option 5094A-C

Sun Fire X4600 Codename: Galaxy 4U StorageTek 5220 NAS Codename: Thunderbird StorageTek 5320 NAS Codename: Falcon Sun Blade X8400 Codename: Andromeda Sun Blade X8420 Codename: Capella Sun Blade X8440 Codename: Mira

Notes

1. Sun Fire X4100 and X4200 used 371-1096 in place of 371-0072, and 371-1097 in place of 371-0073, from 8/1/06 to 10/31/06. (Deviation WO_35026)

Sun Blade 8000 Notes

1. Early production X8400 Blades were built with 371-1096, 371-1097, and 371-1460.
2. The X8400 Blade With Opteron 870, 875, and 885 uses DDR1-400 Memory.
3. The X8420 Blade with Next Generation Opteron Series 8000 uses DDR2-667 Memory.
4. The X8440 Blade with Next Generation Opteron Series 8000 uses DDR2-667 Memory.
5. DIMMs are labeled with the manufacturing part number.
6. DIMMs are not labeled with the FRU part number.

References

1. Sun Fire X4600 Server Documentation.
2. Sun Blade 8000 Modular System Documentation.
