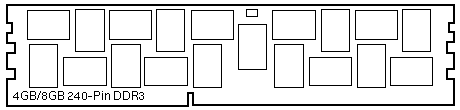

Options X8359A / X8360A / X8362A

371-4901 371-4902
DDR3-1333/PC3-10600
2-Rank/1Gbit SDRAM
1.5V VDD/VDDQ
4GB Registered DIMM
4GB Option X8360A
with Heat Spreader
DDR3-1066/PC3-8500
2-Rank/2Gbit SDRAM
1.5V VDD/VDDQ
8GB Registered DIMM
8GB Option X8359A
with Heat Spreader
371-4916 371-4917
DDR3-1333/PC3-10600
1-Rank/2Gbit SDRAM
1.35V VDD/VDDQ
4GB Registered DIMM
4GB Option X8362A
with Heat Spreader
DDR3-1333/PC3-10600
2-Rank/2Gbit SDRAM
1.35V VDD/VDDQ
8GB Registered DIMM
8GB Option X8361A
with Heat Spreader

Sun Blade X6275 M2 Codename: Vayu+
Sun Fire X2270 M2 Codename: Wasp+

Sun Blade X6275 M2 Memory Notes

  1. Install Blue socket DIMMs D5/D3/D1 then install White socket DIMMs D4/D2/D0.
  2. The configuration of CPU0 and CPU1 memory on each Node must be identical.
  3. Supported configurations are three DIMMs per CPU or six DIMMs per CPU.
  4. DIMM speed is limited by the CPU QuickPath Interconnect (QPI) speed.
  5. Maximum speed is 1333MHz when 1333MHz DIMMs are installed in D1, D3, and D5.
  6. Maximum speed is 1066MHz when any speed DIMMs are installed in all slots.

Sun Fire X2270 M2 Memory Notes

  1. Do not install DIMMs in slots next to an empty CPU socket.
  2. The minimum configuration is one DIMM per CPU.
  3. DIMM speed is limited by the CPU QuickPath Interconnect (QPI) speed.
  4. Install Blue socket DIMMs D5/D3/D1 then install Black socket DIMMs D4/D2/D0.
  5. Use of the same DIMM size and speed is recommended for maximum performance.

References

  1. Sun Blade X6275 M2 Server Module Documentation.
  2. Sun Fire X2270 M2 Server Documentation.
