Sun Fire X2250

Options 5110A / 5111A / 6381A / 6382A

540-7713	540-7714

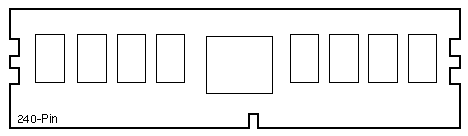

DDR2-800/PC2-6400 CL5/ECC/Fully Buffered 2GB FBDIMM 371-4185 4GB FRU 540-7713 4GB Option 5111A	DDR2-800/PC2-6400 CL5/ECC/Fully Buffered 4GB FBDIMM 371-4186 8GB FRU 540-7714 8GB Option 5110A
540-7347	540-7348
DDR2-667/PC2-5300 CL5/ECC/Fully Buffered 2GB FBDIMM 371-3068 4GB FRU 540-7347 4GB Option 6381A	DDR2-667/PC2-5300 CL5/ECC/Fully Buffered 4GB FBDIMM 371-3069 8GB FRU 540-7348 8GB Option 6382A

Sun Fire X2250 Codename: Venus

Notes

1. Install memory in matched pairs.
2. Memory FRUs include two matched DIMMs.
3. DIMMs are not labeled with the FRU part number.
4. DIMMs are labeled with the manufacturing part number.
5. Quantity and size of components are dependent on DIMM size and manufacturer.

Sun Fire X2250 Notes

1. Install the largest capacity memory in the lowest numbered slots.
2. Install the pairs in slots A0/B0, C0/D0, A1/B1, and then C1/D1.
3. Use DDR2-667 FBDIMMs with 1333MHz Front Side Bus processors only.
4. The Xeon E5405, L5420, and X5460 FSB operates at 1333MHz.
5. Use DDR2-800 FBDIMMs with 1600MHz Front Side Bus processors only.
6. The Xeon E5462, E5472, and X5272 FSB operates at 1600MHz.
7. Mixing DDR2-667 and DDR2-800 FBDIMMs on the system board is not supported.

References

1. Sun Fire X2250 Server Documentation.
