Sun Fire V60x / V65x
StorEdge 5210 NAS / 5310 NAS

Options 5122 / 5123 / 5124 / 5125

370-6038	370-6039	370-6040

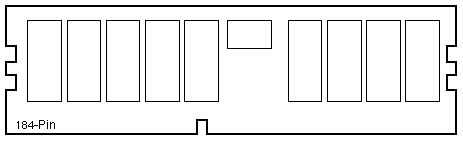

DDR, PC2100, CL2, ECC 256MB Registered DIMM 512MB FRU F370-6038 512MB Option 5122 V60x/V65x	DDR, PC2100, CL2, ECC 512MB Registered DIMM 512MB FRU F370-6039 1GB Option 5123 V60x/V65x	DDR, PC2100, CL2, ECC 1GB Registered DIMM 1GB FRU F370-6040 2GB Option 5124 V60x/V65x/5210NAS/5310NAS
370-6041	370-6141	370-7570
DDR, PC2100, CL2, ECC Single Bank 2-2-2 Latency 2GB Registered DIMM 4GB not shipped	DDR, PC2100, CL2, ECC Double Bank 2-3-3 Latency 2GB Registered DIMM 4GB Option 5125 V65x only	DDR, PC2700, CL2.5, ECC Single Bank 2.5-3-3 Latency 1GB Registered DIMM 1GB FRU F370-7570 No Option 5210NAS/5310NAS

System Codenames

Notes

1. Install memory in pairs, beginning with Bank 1, Slots 1A and 1B.
2. When mixing sizes, install 256/512MB DIMMs in Bank 1 and 1/2GB DIMMs in Bank 2.
3. DIMM failure LEDs are located between the DIMM sockets and CPU 1.
4. An illuminated LED indicates a double-bit DIMM error.

256MB DIMM Notes

1. Infineon 256MB DIMM 370-6038 was released in May 2003.
2. Micron was added as a second source in March 2004.
3. F370-6038-01 includes one 370-6038 256MB DIMM.
4. F370-6038-02 includes two 370-6038 256MB DIMMs from the same vendor.
5. Do Not mix Infineon and Micron DIMMs in the same bank.

2GB DIMM Notes

1. 2GB DIMM 370-6041 was released in May 2003 and inactivated in January 2004.
2. Option 5125 with 2GB DIMM 370-6041 was not shipped.
3. 2GB DIMM 370-6141 was released in Jaunary 2004.
4. F370-6141 includes two 370-6141 2GB DIMMs.
5. 2GB DIMMs have not been tested with 256MB, 512MB, and 1GB DIMMs.
6. Mixing 2GB DIMMs with 256MB, 512MB, and 1GB DIMMs is not supported.

References

1. Sun Fire V60x Server Documentation.
2. Sun Fire V65x Server Documentation.
3. Sun Fire V60x and V65x Server Memory Modules Removal and Replacement Instructions, 817-2284.
