Flash Module

Option X4676A
Option XTA4ST3S-24GBFM
Option XRA-ST3C-24G2FMD

371-4091	371-4531	371-4846

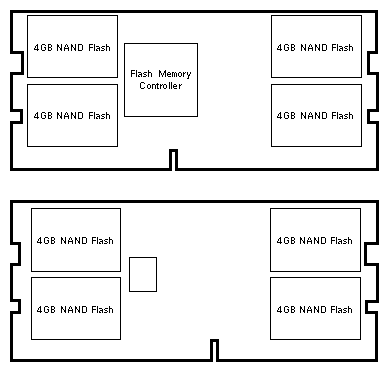

24GB SATA Flash MiniDIMM SD88SA024SA0-MDM2C000 XTA4ST3S-24GBFM	24GB SATA Flash MiniDIMM SD88SA024BB0-MDM1C000 SD88SA024BB0-MDM2C000 X4676A XRA-ST3C-24G2FMD	24GB SATA Flash MiniDIMM SD88SA024BB0-MDM1C000 XTA4ST3S-24GBFM

Storage F5100 Codename: Lightning Flash 1.0 (aka Mongo) Sun Blade X6275 Codename: Vayu Sun Fire X2270 M2 Codename: Wasp+ Sun Fire X4170 M2 Codename: Lynx+ (Thelma) Sun Fire X4270 M2 Codename: Lynx 2U (Hyde+)

Notes

1. Raw capacity is 32GB. Usable capacity is 24GB.
2. Firmware MP1F on 371-4091-05 fixes BugID 6866655 (WO_41961).
3. XTA4ST3S-24GBFM changed from 371-4091 to 371-4846 in March 2010. (WO_42737)

References

1. Sun Blade X6275 Server Module Documentation.
2. Sun Fire X2270 M2 Server Documentation.
3. Sun Storage F5100 Flash Array Documentation.
4. Sun Fire X4170 M2 Service Manual , 821-0486.
5. Sun Fire X4170 M2 and X4270 M2 Product Notes, 821-0482.
6. Sun Fire X4170 M2 and X4270 M2 Installation Guide, 821-0481.
7. Sun Fire X4270 M2 Server Documentation.
