Servers: Sun Blade X6270
Sun Fire X4170, X4270, X4275
Telco: Netra X4270
Sun Oracle Database Machine: Oracle Exadata V2

Options 4650A / 4651A / 4652A / 4653A / 4654A
Options 5866A / 5867A / 5868A / 5869A / 5870A

371-4282 371-4283 371-4285

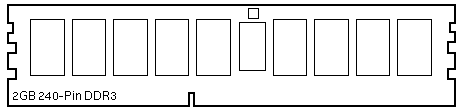

DDR3-1066/PC3-8500
1-Rank/1Gbit SDRAM
2GB Registered DIMM
2GB Option 4650A/5866A
without Heat Spreader

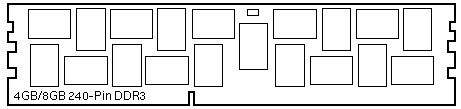

DDR3-1066/PC3-8500
2-Rank/1Gbit SDRAM
4GB Registered DIMM
4GB Option 4651A/5867A
with Heat Spreader
DDR3-1066/PC3-8500
2-Rank/2Gbit SDRAM
8GB Registered DIMM
8GB Option 4652A/5868A
with Heat Spreader
371-4287 371-4288
DDR3-1333/PC3-10600
1-Rank/1Gbit SDRAM
2GB Registered DIMM
2GB Option 4653A/5869A
without Heat Spreader
DDR3-1333/PC3-10600
2-Rank/1Gbit SDRAM
4GB Registered DIMM
4GB Option 4654A/5870A
with Heat Spreader

Sun Blade X6270 Codename: Virgo
Sun Fire X4170 Codename: Lynx 1U
Sun Fire X4270 Codename: Lynx 2U Elwood
Sun Fire X4275 Codename: Lynx 2U Hyde
Netra X4270 Codename: Aurigi-DC
Oracle Exadata V2 Codename: Quicksilver

Sun Blade X4170/X4270/X4275 and X6270 Notes

  1. DIMM speed is limited by the CPU QuickPath Interconnect (QPI) speed.
  2. Install memory filler panel 350-1288 in all unused slots.
  3. Install the first three DIMMs in CPU0 and CPU1 slots D8, D5, and D2.
  4. Install the second three DIMMs in CPU0 and CPU1 slots D7, D4, and D1.
  5. Install the last three DIMMs in CPU0 and CPU1 slots D6, D3, and D0.
  6. Use of the same DIMM size and speed is recommended for maximum performance.

References

  1. Sun Blade X6270 Server Module Documentation.
  2. Sun Fire X4170 Server Documentation.
  3. Sun Fire X4270 Server Documentation.
  4. Sun Fire X4275 Server Documentation.
