Sun Blade X6220
Options 4291A / 4292A / 4293A
371-2435
371-2436
371-2437

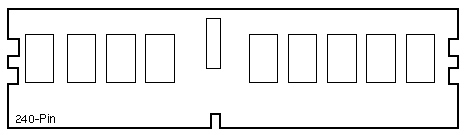

DDR2-667/PC2-5300
CL4/ECC/Registered
1GB DIMM
2GB FRU 540-7255
2GB Option 4291A
DDR2-667/PC2-5300
CL4/ECC/Registered
2GB DIMM
4GB FRU 540-7256
4GB Option 4292A
DDR2-667/PC2-5300
CL4/ECC/Registered
4GB DIMM
8GB FRU 540-7257
8GB Option 4293A
Sun Blade X6220 Codename:
Gemini
Notes
DIMM fault LEDs are located in the DIMM ejectors.
Press Locate Fault button SW3300 to illuminate the system board fault LEDs.

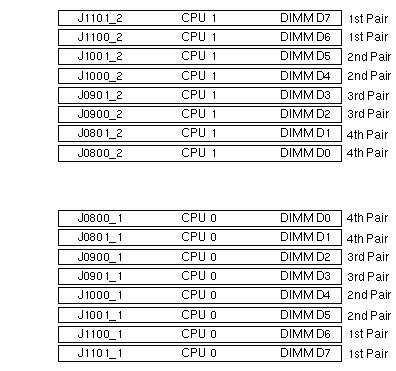

DIMMs must be installed in pairs.
The memory sockets are colored black or white to indicate which slots are paired by matching colors.
Each pair of DIMMs must be identical (same manufacturer, size and speed).
Populate the DIMMs in the slots farthest from the CPU first.
The first pair to be populated should be D7/D6, then D5/D4, and so on.
References
Sun Blade X6220 Server Module Documentation.
