Options 7101696 / 7101697 / 7101698
Options 7104199 / 7104201

7014642 7014640 7020577
DDR3L-1333/PC3L-10600
2-Rank/2Gbit SDRAM
1.35V VDD/VDDQ

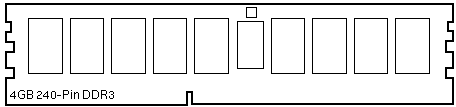

4GB Registered DIMM

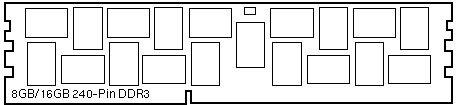

8GB Option 7101696
DDR3L-1333/PC3L-10600
2-Rank/2Gbit SDRAM
1.35V VDD/VDDQ
8GB Registered DIMM
16GB Option 7101697
DDR3L-1066/PC3L-8500
4-Rank/2Gbit SDRAM
1.35V VDD/VDDQ
16GB Registered DIMM

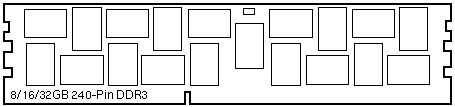

32GB Option 7101698
7042210 7042211
DDR3L-1600/PC3L-12800
2-Rank/4Gbit SDRAM
1.35V VDD/VDDQ
16GB Registered DIMM
16GB Option 7104199
DDR3L-1333/PC3L-10600
4-Rank/4Gbit SDRAM
1.35V VDD/VDDQ
32GB Registered DIMM
32GB Option 7104201

SPARC T4-1 Notes

  1. Install the first four DIMMs in the blue slots.
  2. Install the second four DIMMs in the white slots.
  3. Install the last eight DIMMs in the black slots.
  4. Install Memory Filler 350-1288 in all unused slots.

SPARC T4-1B Notes

  1. Install the first four DIMMs in all Channel 1 DIMM 0 slots.
  2. Install the next four DIMMs all Channel 0 DIMM 0 slots.
  3. Install the next eight DIMMs in the remaining slots.
  4. Mixing DIMM sizes is not supported.

SPARC T4-2 Notes

  1. Install D0/D4 (blue), then D2/D6 (white), then D1/D5 (black), and then D3/D7 (green), only 4 and 8 DIMM configurations are supported.
  2. Install DIMM Filler 350-1288 in all unused SPARC T3-2 slots.
  3. Install Memory Riser Filler 330-5269 in all unused Riser slots.

SPARC T4-4 Notes

  1. Install the first sixteen DIMMs in the blue and white CMP0 and CMP1 DIMM0 slots.
  2. Install the second eight DIMMs in the black CMP1 DIMM1 slots.
  3. Install the last eight DIMMs in the black CMP0 DIMM1 slots.
  4. Install Dimm Filler 350-1288 in all unused DIMM slots.

References

  1. SPARC T4-1 Server Service Manual.
  2. SPARC T4-2 Server Service Manual.
  3. SPARC T4-4 Server Service Manual.
  4. SPARC T4-1B Server Service Manual.



Options 7101696 / 7102494 / 7102495

7014642 7041271 7041272
Shipped ATO as 7014668
DDR3L-1333/PC3L-10600
2-Rank/2Gbit SDRAM
1.35V VDD/VDDQ

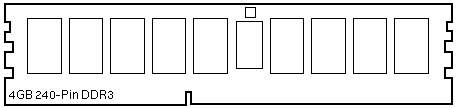

4GB Registered DIMM
8GB Option 7101696
Shipped ATO as 7041271
DDR3L-1333/PC3L-10600
2-Rank/2Gbit SDRAM
1.35V VDD/VDDQ
8GB Registered DIMM
16GB Option 7102494
Shipped ATO as 7041272
DDR3L-1066/PC3L-8500
4-Rank/2Gbit SDRAM
1.35V VDD/VDDQ
16GB Registered DIMM
32GB Option 7102495

Netra SPARC T4-1 Notes

  1. Install the first four DIMMs in the blue slots.
  2. Install the second four DIMMs in the white slots.
  3. Install the last eight DIMMs in the black slots.
  4. Install Memory Filler 350-1288 in all unused slots.

Netra SPARC T4-1B Notes

  1. Install the first four DIMMs in all Channel 1 DIMM 0 slots.
  2. Install the next four DIMMs all Channel 0 DIMM 0 slots.
  3. Install the next eight DIMMs in the remaining slots.
  4. Mixing DIMM sizes is not supported.

References

  1. Netra SPARC T4-1 Server Service Manual.
  2. Netra SPARC T4-1B Server Service Manual.
  3. Netra SPARC T4-2 Server Service Manual.
