Netra T1 AC200 / Netra T1 DC200
Netra 120 / Sun Fire V120

Options 7091 / 7092 / 7093

370-4237	370-4281	370-4874

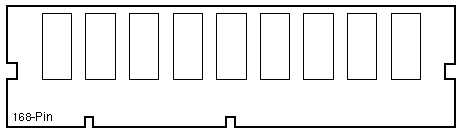

256MB 3.3V ECC PC133 SDRAM DIMM T1/N120/V120 Option 7091	512MB 3.3V ECC PC133 SDRAM DIMM T1/N120/V120 Option 7092	1GB 3.3V ECC PC133 SDRAM DIMM N120/V120 Option 7093

Address Generation Logic Memory Mapping

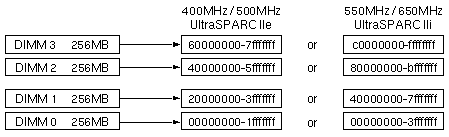

Identical Size DIMMs Example

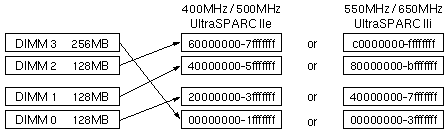

Mixed Size DIMMs Example

Memory Notes

1. The minimum memory requirement is one DIMM in Slot 0.
2. The memory installation sequence is Slot 0, 1, 2, and 3.
3. Each DIMM slot addresses 512MB with 400MB and 500MHz UltraSPARC IIe.
4. Each DIMM slot addresses 1GB with 550MHz and 650MHz UltraSPARC IIi.
5. When equal size DIMMs are installed, the lowest slot number is mapped to the lowest address range.
6. When mixed size DIMMs are installed, the slot number with the largest size DIMM is mapped to the lowest address range.
7. Memory bus speed is set by OBP during initialization and is a ratio of the CPU clock frequency.

References

1. Netra T1 Server User's Guide, 806-5978.
2. Netra 120 Server Documentation.
3. Sun Fire V120 Server Documentation.
