Options X4095A / X4096A / X4850A / X4851A / X4910A / X4911A

371-4898 371-4899
DDR3-1333/PC3-10600
2-Rank/1Gbit SDRAM
1.5V VDD/VDDQ

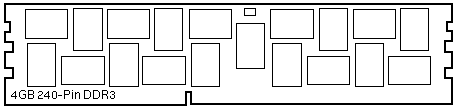

4GB Registered DIMM
4GB Option X4850A
with Heat Spreader
DDR3-1066/PC3-8500
2-Rank/2Gbit SDRAM
1.5V VDD/VDDQ
8GB Registered DIMM
8GB Option X4851A
with Heat Spreader
371-4073 371-4999 371-4965 371-4966
DDR3-1333/PC3-10600
1-Rank/2Gbit SDRAM
1.35V VDD/VDDQ
4GB Registered DIMM
4GB Option X4095A
with Heat Spreader
DDR3-1333/PC3-10600
2-Rank/2Gbit SDRAM
1.35V VDD/VDDQ
8GB Registered DIMM
8GB Option X4096A
with Heat Spreader
DDR3-1333/PC3-10600
1-Rank/2Gbit SDRAM
1.35V VDD/VDDQ
4GB Registered DIMM
4GB Option X4910A
with Heat Spreader
DDR3-1333/PC3-10600
2-Rank/2Gbit SDRAM
1.35V VDD/VDDQ
8GB Registered DIMM
8GB Option X4911A
with Heat Spreader

Notes

  1. Do not install DIMMs in slots next to an empty CPU socket.
  2. The minimum configuration is one DIMM per CPU.
  3. DIMM speed is limited by the CPU QuickPath Interconnect (QPI) speed.
  4. Install DIMMs D8/D5/D2 then DIMMs D7/D4/D1 then DIMMs D6/D3/D0.
  5. Use of the same DIMM size and speed is recommended for maximum performance.
  6. DIMMs 371-4965 and 371-4966 are not qualified for use in the Netra X4270.

References

  1. Sun Netra X4270 Server Documentation.
  2. Sun Netra X6270 M2 Server Module Documentation.
  3. Sun Blade X6270 M2 Service Manual , 821-0499.
  4. Sun Blade X6270 M2 Product Notes, 821-0496.
  5. Sun Fire X4170 M2 Service Manual, 821-0486.
  6. Sun Fire X4270 M2 Server Documentation.
  7. Sun Fire X4170 M2 and X4270 M2 Product Notes, 821-0482.
