E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500

Options 7021 / 7022 / 7023 / 7026

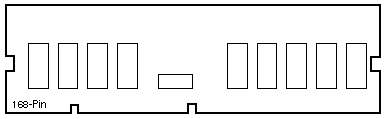

501-2652 501-2653 501-2654
8MB 3.3V ECC
60ns DIMM
May 1996
Option 7021
32MB 3.3V ECC
60ns DIMM
May 1996
Option 7022
128MB 3.3V ECC
60ns DIMM
May 1996
Option 7023
501-5658 501-6901 501-6902
256MB 3.3V ECC
60ns DIMM
October 1999
Option 7026
256MB 3.3V ECC
60ns DIMM
August 2004
No Option
Dataram
256MB 3.3V ECC
60ns DIMM
May 2004
No Option
Hyundai

Notes

  1. Eight DIMMs form a bank.
  2. All DIMMs within a bank must be the same size.
  3. The first bank of memory can be either Bank 0 or Bank 1.
  4. Install one bank on each CPU/Memory board before installing the second bank on any board.
  5. Install the largest density banks first, then medium density banks, and finally the smallest density banks.
  6. The 256MB DIMMs require OBP >=3.2v23.
    OBP 3.2v26 fixes 2GB memory bank BugID 4323635.
    OBP 3.2v29 fixes mirrored SRAM identification BugID 4427581.
    See Patch 103346.
  7. The Solaris 2.5.1 prtdiag command displays incorrect memory capacity. Install Patch 104595-09 or higher.
  8. OBP 3.2v26 fixes 2GB memory bank BugID 4323635.

References

  1. Sun Enterprise 3000 Server Documentation.
  2. Sun Enterprise 4000 Server Documentation.
  3. Sun Enterprise 5000 Server Documentation.
  4. Sun Enterprise 6000 Server Documentation.
