Type-5 Keyboard

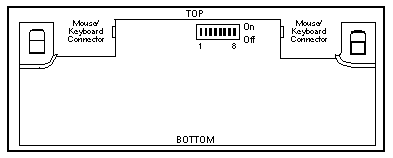

Underside of Keyboard

DESCRIPTION DIP SWITCH CODE
1 2 3 4 5 6 7 8
US - - On - - - - On 21
US/Unix - - On - - - On - 22
French - - On - - - On On 23
Danish - - On - - On - - 24
German - - On - - On - On 25
Italian - - On - - On On - 26
Dutch - - On - - On On On 27
Norwegian - - On - On - - - 28
Portuguese - - On - On - - On 29
Spanish - - On - On - On - 2a
Swedish/Finnish - - On - On - On On 2b
Swiss/French - - On - On On - - 2c
Swiss/German - - On - On On - On 2d
UK - - On - On On On - 2e
Korean - - On - On On On On 2f
Taiwanese - - On On - - - - 30
Nihon-go - - On On - - - On 31
French Canadian - - On On - - On - 32

Power

0.3 Amps @ +5Vdc
1.5 Watts

PART # DESCRIPTION
320-1072 Type-5 Keyboard, Mini-Din, US
320-1073 Type-5 Keyboard, Mini-Din, US/UNIX
320-1074 Type-5 Keyboard, Mini-Din, French
320-1075 Type-5 Keyboard, Mini-Din, Danish
320-1076 Type-5 Keyboard, Mini-Din, German
320-1077 Type-5 Keyboard, Mini-Din, Italian
320-1078 Type-5 Keyboard, Mini-Din, Netherlands/Dutch
320-1079 Type-5 Keyboard, Mini-Din, Norwegian
320-1080 Type-5 Keyboard, Mini-Din, Portuguese
320-1081 Type-5 Keyboard, Mini-Din, Spanish
320-1082 Type-5 Keyboard, Mini-Din, Swedish
320-1083 Type-5 Keyboard, Mini-Din, Swiss/French
320-1084 Type-5 Keyboard, Mini-Din, Swiss/German
320-1085 Type-5 Keyboard, Mini-Din, UK
320-1086 Type-5 Keyboard, Mini-Din, Korean
320-1087 Type-5 Keyboard, Mini-Din, Taiwanese
320-1088 Type-5 Keyboard, Mini-Din, Nihon-go
320-1089 Type-5 Keyboard, Mini-Din, Finnish
320-1090 Type-5 Keyboard, Mini-Din, US without Sun Logo
320-1091 Type-5 Keyboard, Mini-Din, US/UNIX without Sun Logo
320-1092 Type-5 Keyboard, Mini-Din, Nihon-go without Sun Logo
320-1193 Type-5 Keyboard, Mini-Din, French Canadian


530-1442 Keyboard Cable, Mini-Din to Mini Din, 2.0M
530-1443 Keyboard Cable, Mini-Din to Mini Din, 4.6M
530-2123 Keyboard Cable, Mini-Din to Mini Din, 1.5M
530-1478 Keyboard Cable, DB-15 to Mini Din, 2.0M
530-1479 Keyboard Cable, DB-15 to Mini Din, 4.6M

Note

  1. The minimum operating system is SunOS 4.1.
  2. The Type 5 Keyboard Supplement is required for SunOS 4.1, SunOS 4.1.1, and SunOS 4.1.1 Rev B.
  3. The Type-5c Keyboard replaced the Type-5 in August 1994.
