SunButtons

Option 180

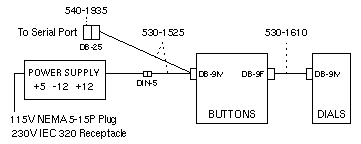

Wiring Diagram

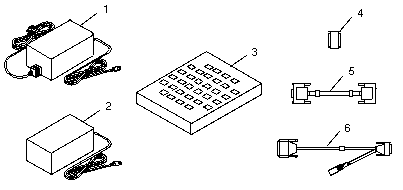

CODE PART # DESCRIPTION
- 595-1865 115V SunButtons Assembly
- 595-1884 230V SunButtons Assembly
1 300-1053 115V Power Supply
2 300-1054 230V Power Supply
3 370-1291 SunButtons Box
4 540-1935 RFI Filter, DB-25
5 530-1610 DB-9M to DB-9F Cable, 600 mm
6 530-1525 DB-9 to DB-15 to DIN-5 Cable, 2.0M
NS 180-1125 230V AC Power Cord (obsolete)
NS 260-3861 Overlay Template
