2-Slot PCI Express Riser


501-7964 541-2884

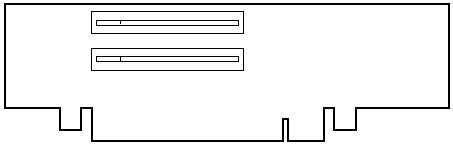

x8/x8 PCI Express 2.0 Riser
PCI Express Riser FRU
501-7964 + Bracket 541-2531
511-1139 541-3356

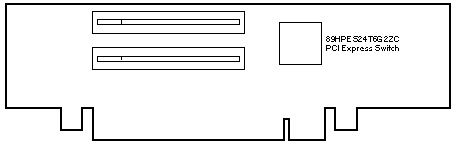

x8/x8 Switched PCI Express 2.0 Riser
PCI Express Riser FRU
511-1139 + Bracket 541-2531

x8/x8 PCI Express 2.0 Riser 501-7964

x8/x8 Switched PCI Express 2.0 Riser 511-1139

Sun Fire X4270 Codename: Lynx 2U Elwood
Sun Fire X4270 M2 Codename: Lynx 2U (Hyde+)
Sun Fire X4275 Codename: Lynx 2U Hyde
Oracle Exadata V2 Codename: Quicksilver
Oracle Exadata X2-2 Codename: EX2-2 (Plus)
Oracle Exadata X2-8 Codename: EX2-8 (Plus-Plus)
Sun ZFS Storage 7120 Codename: Amber Road (Iwashi+)
SPARC Supercluster T4-4 Codename: SSC
Big Data Appliance Codename: BDA

Notes

  1. One x8 PCI Express Riser is installed in Slot 0/3.
  2. Two x8 Switched PCI Express Risers are installed in Slots 1/4 and Slot 2/5.
  3. Slot 0 is electrically sixteen lanes wide when a one slot x16 riser is installed.
  4. Slot 0/3 is electrically eight lanes wide when a two slot x8 riser is installed.
  5. Slots 1/4 and 2/5 are electrically eight lanes wide.

References

  1. Sun Fire X4270 Server Documentation.
  2. Sun Fire X4170 M2 and X4270 M2 Installation Guide, 821-0481.
  3. Sun Fire X4270 M2 Service Manual, 821-0488.
  4. Sun Fire X4170 M2 and X4270 M2 Product Notes, 821-0482.
