1-Slot x16 PCI Express Riser

Servers: Sun Fire X4140, X4150
Disk Arrays: Storage 7310, 7310 SAS 2.0


501-7743 541-2298

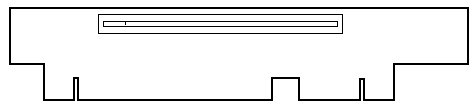

x16 PCI Express Riser
PCI Express Riser FRU
501-7743 + Bracket 541-2737

Sun Fire X4140 Codename: Dorado 1U
Sun Fire X4150 Codename: Doradi
Sun Storage 7310 Codename: Amber Road Maguro
Sun Storage 7310 SAS 2.0 Codename: Amber Road SAS2.0

X4150 Notes

  1. Three x8/x16 PCI Express Risers are installed in Slot 0/3, Slot 1/4, and 2/5.
  2. Slot 2, 3, 4, and 5 PCI Express Channels are electrically four lanes wide.
  3. Slot 0 and Slot 1 PCI Express Channels are electrically eight lanes wide.

References

  1. Sun Fire X4140 Server Documentation.
  2. Sun Fire X4150 Server Documentation.
