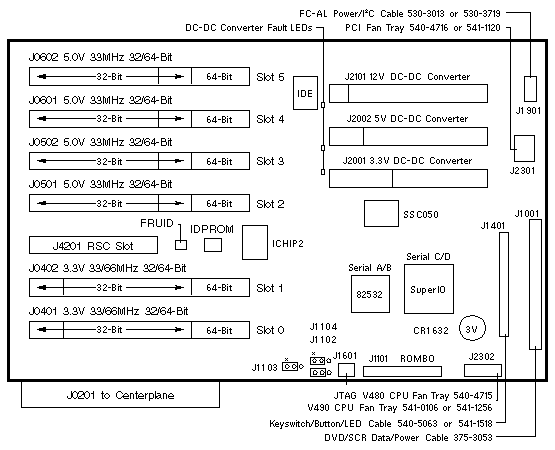

I/O Riser Board

Sun Fire V480/V490

501-5820 501-7315 501-7705

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J1102 1-2
2-3
In
In
Select Flash PROM (default)
Select ROMBO
J1103 1-2
2-3
In
In
FPROM low half booting (default)
FPROM high half booting
J1104 1-2
2-3
In
In
FPROM write enabled (default)
FPROM write protected

Schizo Data Address Mappings

Schizo Bus  #  Device Device Path Speed
0 EPCI Bus A
(pci8a)
0 PCI Slot 0 [email protected],600000/<device>@1 66MHz
1 PCI Slot 1 [email protected],600000/<device>@2 66MHz
PCI Bus B
(pci8b)
1 PCI Slot 2 [email protected],700000/<device>@2 33MHz
2 PCI Slot 3 [email protected],700000/<device>@3 33MHz
3 PCI Slot 4 [email protected],700000/<device>@4 33MHz
4 PCI Slot 5 [email protected],700000/<device>@5 33MHz
5 IDE [email protected],700000/[email protected] 33MHz
1 EPCI Bus C
(pci9a)
0 Cassini 1 [email protected],600000/[email protected] 66MHz
1 FCAL [email protected],600000/SUNW,[email protected] 66MHz
PCI Bus D
(pci9b)
0 EBUS [email protected],700000/[email protected] 33MHz
1 USB [email protected],700000/[email protected],3 33MHz
2 Cassini 0 [email protected],700000/[email protected] 33MHz

Sun Fire V480 Codename: Cherrystone
Sun Fire V490 Codename: Sebring

Notes

  1. The minimum Sun Fire V480 operating system is Solaris 8 2/02.
  2. The minimum Sun Fire V490 operating system is Solaris 8 2/04 or Solaris 9 4/04.
  3. IDPROM 100-5311 is not available as a FRU.
  4. The programmed IDPROM contains two MAC addresses.
  5. DC-DC Converter (3.3V) 300-1437 is not available as a FRU.
  6. DC-DC Converter (5V) 300-1494 is not available as a FRU.
  7. DC-DC Converter (12V) 300-1495 is not available as a FRU.

References

  1. Sun Fire V480 Server Documentation.
  2. Sun Fire V490 Server Documentation.
