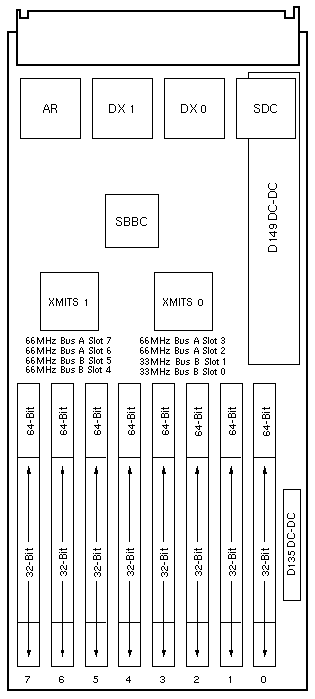

PCI+ I/O Board

Sun Fire 4800 / 4810 / 6800 / E4900 / E6900

Options 4051 / 4051A-Z

501-6133 540-6247
PCI+ Assembly
FAB 270-6133
FRU Assembly
PCB 501-6133
501-7455 540-6899 540-7832
PCI+ Assembly
FAB 270-6133
L
FRU Assembly
PCB 501-7455
L
FRU Assembly
PCB 501-7455
L

PCI Device Mapping

PHYSICAL SLOT # DEVICE PATH XMITS LEAF
7 IB9 /[email protected],0/[email protected],600000/<device>@1 1 A
IB8 /[email protected],0/[email protected],600000/<device>@1
IB7 /[email protected],0/[email protected],600000/<device>@1
IB6 /[email protected],0/[email protected],600000/<device>@1
6 IB9 /[email protected],0/[email protected],600000/<device>@2
IB8 /[email protected],0/[email protected],600000/<device>@2
IB7 /[email protected],0/[email protected],600000/<device>@2
IB6 /[email protected],0/[email protected],600000/<device>@2
5 IB9 /[email protected],0/[email protected],700000/<device>@2 B
IB8 /[email protected],0/[email protected],700000/<device>@2
IB7 /[email protected],0/[email protected],700000/<device>@2
IB6 /[email protected],0/[email protected],700000/<device>@2
4 IB9 /[email protected],0/[email protected],700000/<device>@1
IB8 /[email protected],0/[email protected],700000/<device>@1
IB7 /[email protected],0/[email protected],700000/<device>@1
IB6 /[email protected],0/[email protected],700000/<device>@1
3 IB9 /[email protected],0/[email protected],600000/<device>@1 0 A
IB8 /[email protected],0/[email protected],600000/<device>@1
IB7 /[email protected],0/[email protected],600000/<device>@1
IB6 /[email protected],0/[email protected],600000/<device>@1
2 IB9 /[email protected],0/[email protected],600000/<device>@2
IB8 /[email protected],0/[email protected],600000/<device>@2
IB7 /[email protected],0/[email protected],600000/<device>@2
IB6 /[email protected],0/[email protected],600000/<device>@2
1 IB9 /[email protected],0/[email protected],700000/<device>@2 B
IB8 /[email protected],0/[email protected],700000/<device>@2
IB7 /[email protected],0/[email protected],700000/<device>@2
IB6 /[email protected],0/[email protected],700000/<device>@2
0 IB9 /[email protected],0/[email protected],700000/<device>@1
IB8 /[email protected],0/[email protected],700000/<device>@1
IB7 /[email protected],0/[email protected],700000/<device>@1
IB6 /[email protected],0/[email protected],700000/<device>@1

Sun Fire 3800-6800 Codename: Serengeti
Sun Fire E4900 Codename: Amazon 4
Sun Fire E6900 Codename: Amazon 6

Notes

  1. UltraSPARC III minimum OS is Solaris 8 4/01 with Patch 109873-21 or Solaris 9 12/03.
  2. UltraSPARC IV minimum OS is Solaris 8 2/04 or Solaris 9 4/04.
  3. Assembly 540-6899 is built with IO Board 501-7455-02.
    IO Board 501-7455-02 is built with rear panel 540-7065-01 with ejector 330-3028.
  4. Assembly 540-7832 is built with IO Board 501-7455-03.
    IO Board 501-7455-03 is built with rear panel 540-7065-02 with ejector 330-3825.
  5. The 330-3028 was replaced by 330-3825 because of DecaBDE in the ejector resin. (WO_39578)
  6. The European Unions October 12, 2005 exemption (2005/717/EC) of DecaBDE from Directive 2002/95/EC ended July 1, 2008.

Installation Notes

  1. PCI I/O+ Board slots are labeled IB6 to IB9.
  2. The left to right system installation sequence is IB6, IB8, IB7, and IB9.
  3. Slots 0 and 1 support short length (174.63 mm) PCI boards.
  4. Slots 0 and 1 do not support standard length (312 mm) PCI boards.
  5. Slots 2 through 7 support short and standard length PCI boards.
  6. Slots 0 through 7 do not support 5V keyed PCI cards.
  7. Slots 0 through 7 support 3.3V keyed or Universal keyed PCI cards.
  8. Refer to the Install.info file of any Firmware patch for information on firmware verification and compatibility.

Filler Notes

  1. Install PCI Filler Board 540-4045 in all short empty PCI board slots.
  2. Install PCI Filler Board 540-4046 in all long empty PCI board slots.
  3. Install Filler Panel 330-2822 when servicing a PCI I/O board slot.

References

  1. PCI+ I/O Installation Guide, 819-0225.
  2. Powering On and Off Guide, 806-2956.
  3. How To article 1012185.1 provides more details about PCI Device Mapping.
