hsPCI I/O Board

Sun Fire 12K / 15K / E20K / E25K

Option 4575

501-6030 501-6302 501-5397 501-6784
PCI I/O Assembly
<= 501-6030-06
w 3.3v 501-5599
w 5.0v 501-5600
June 2001
PCI I/O Assembly
501-6030-07
w 3.3v 501-6086
w 5.0v 501-5600
November 2002
PCI I/O Assembly
w 3.3v 501-5599
w 5.0v 501-5600
September 2001
FRU Assembly
w/o PCI Cassettes
June 2001
FRU Assembly
w/o PCI Cassettes
only available from
Sun Services
December 2003

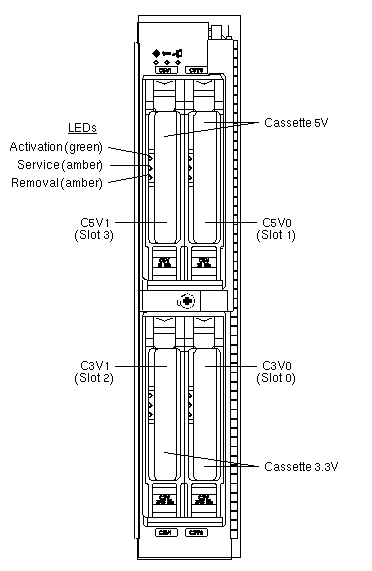

Front View

I/O Slots

SLOT NUMBER FREQUENCY BIT
SIZE
COLOR
CODE
VOLTAGE
C5V0 (Slot 1) 33 MHz 64-bit Blue 5VDC
C5V1 (Slot 3) 33 MHz 64-bit Blue 5VDC
C3V0 (Slot 0) 33/66 MHz 64-bit Yellow 3.3VDC
C3V1 (Slot 2) 33/66 MHz 64-bit Yellow 3.3VDC

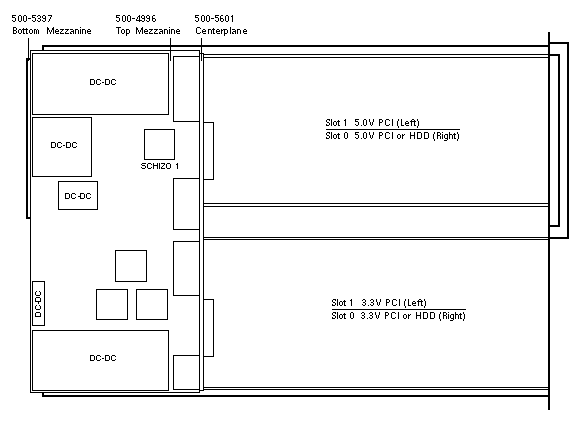

Side View

Notes

  1. The 501-6030 was built with 501-5397-06/07/08/10/11.
  2. The 501-6302 was built with 501-5397-07/09.
  3. The 501-6302-01 was a new part number for 501-6030-01 Rev 51.
  4. The 501-5397-07 and -09 are reworked by Sun Services and relabeled 501-6784.
  5. The HDD option for slots labeled HDD (PLC-IMS ID 3880) was cancelled in April 2003.

References

  1. Sun Fire 12K Server Documentation.
  2. Sun Fire 15K Server Documentation.
  3. Sun Fire E20K Server Documentation.
  4. Sun Fire E25K Server Documentation.
