PCI-X Riser Board

Sun Fire V60x

No Sun Part Number
3.3V PCI-X Riser
1-Slot Low Profile
Assembly A86454-002
No Sun Part Number
3.3V PCI-X Riser
1-Slot Full-Height
Assembly A86455-002

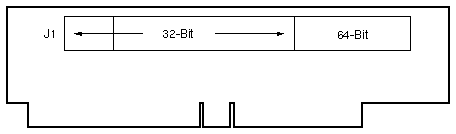

1-Slot 3.3V 100MHz 32/64-Bit PCI-X Riser

Sun Fire V60x Codename: Grizzly

Notes

  1. The 3.3v Riser boards plug into 5.0v slots on the motherboard.
  2. Remove the Riser Board from the motherboard before installing PCI Boards.
  3. The 2D/3D ATI Rage XL Video Controller is on 32-Bit PCI Segment A.
  4. Full-Height Riser slots share 64-Bit PCI Segment B with dual channel Gigabit Ethernet.
  5. Low Profile Riser slots share 64-Bit PCI Segment C with dual channel SCSI.
  6. Slot J1 is Modular RAID on Motherboard (MROMB) enabled.
  7. Install zero channel RAID controller Option 5132 in Slot J1.

References

  1. Sun Fire V60x and V65x Release Notes, 817-2026.
  2. Sun Fire V60x and V65x User Guide, 817-2023.
  3. Sun Fire V60x and V65x Troubleshooting Guide, 817-2024.
  4. Sun Fire V60x and V65x Server Management Guide, 817-2025.
