2-Slot PCI Express Riser

511-1613 541-4084

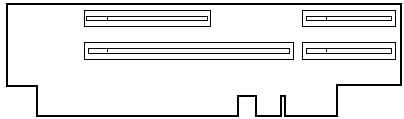

x8/XAUI PCI Express Riser
Slot 0/3 and 1/4
PCI Express Riser FRU
511-1613 + Bracket 350-1413
511-1614 541-4085

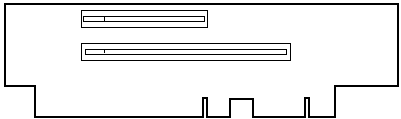

x8/x16 PCI Express Riser
Slot 2/5
PCI Express Riser FRU
511-1614 + Bracket 541-2531

x8/xAUI PCI Express 2.0 Riser 511-1613

x8/x16 PCI Express 2.0 Riser 511-1614

SPARC T3-1 and T4-1 Notes

  1. Two x8 PCI Express/XAUI Risers are installed in Slot 0/3 and Slot 1/4.
  2. One x8/x16 PCI Express Riser is installed in Slot 2/5.
  3. SPARC T3-1 Slots 0, 1, 3, and 4 PCI Express Channels are electrically four lanes wide.
  4. SPARC T3-1 Slots 2, and 5 PCI Express Channels are electrically eight lanes wide.
  5. All SPARC T4-1 PCI Express Channels are electrically eight lanes wide.
  6. Slot 0, 1, and 2 PCI Express Channels are mechanically sixteen lanes wide.
  7. Slot 3, 4, and 5 PCI Express Channels are mechanically eight lanes wide.
  8. The XAUI slots on the x8/XAUI Riser installed in Slot 1/4 are not functional.

References

  1. SPARC T3-1 Server Documentation.
  2. SPARC T4-1 Server Documentation.
