PCI I/O Board

E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500
Option 2630

501-3023 501-4325
I/O Type 3
83MHz Gigaplane

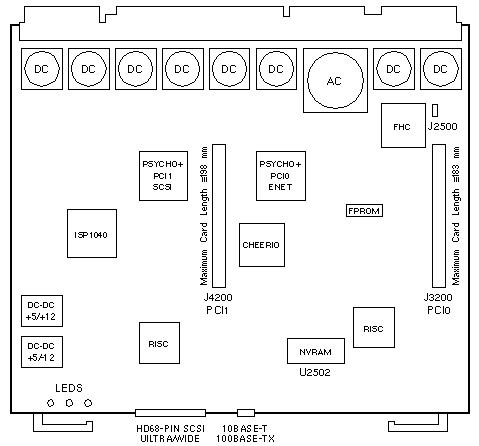

I/O Type 3 FRU
w 2× 5V Risers

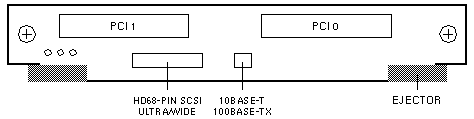

Backpanel and Connectors

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J2500 1-2 Out Inv Adr 1

Notes

  1. The minimum Ex000 operating system is 2.5.1.
  2. The minimum Ex500 OS is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  3. The Gigaplane runs at the speed of the slowest detected board.
  4. The E3000-E6000 CPU/Memory Board requires OBP 3.2 Version 8.
  5. Patch 103346-06 includes OBP 3.2 Version 8.
  6. Option 2630 includes two 5V Riser Boards and two 3.3V Riser Boards.
  7. Up to three PCI I/O Boards are supported in the E3x00.
  8. Up to six PCI I/O Boards are supported in the E4x00, E5x00, and E6x00.
  9. The following cable types are supported:
    50/125 Multimode Fiber up to 2 Kilometers
    62.5/125 Multimode Fiber up to 500 meters
  10. Refer to the Install.info file of any Firmware patch for information on firmware verification and compatibility.

FlashPROM Notes

  1. Use the Flash PROM Programming Utility to update the FCode.
  2. Use the prom-copy command (src dst prom-copy) to copy a flash PROM.
    ok 2 b prom-copy (copies from board 2 to board 11)
  3. Use the update-proms command to synchronize the latest version of the flash PROM installed in the system to all boards of the same type.

NVRAM Notes

  1. The Clock Board and I/O Board NVRAMs are automatically synchronized when the Clock Board NVRAM contents matches at least one I/O Board NVRAM.
  2. Use the following OBP command to manually synchronize a new or replacement I/O Board to an existing Clock Board:
    ok copy-clock-tod-to-io-boards
  3. Use the following OBP command to manually synchronize a new or replacement Clock Board to an existing I/O Board:
    ok (ioboard# in hex) copy-io-board-tod-to-clock-tod

ISP1040 Ultra SCSI Controller Notes

  1. The ISP 1040 is an Ultra SCSI controller.
  2. Ultra SCSI transfer rates are not supported as of 6/98.
  3. Disable Ultra SCSI transfers to the onboard SCSI controller.
  4. Refer to PCI I/O Product Note, 805-3364 of September 1997.

References

  1. PCI I/O Board Installation, 805-1372.
  2. Ultra Enterprise 3000 System Manual, 802-6051.
  3. Ultra Enterprise 4000/5000/6000 System Manual, 802-3845.
  4. System Flash PROM Programming Guide, 802-5579.



PCI I/O Board

E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500
Option 2632

501-4881 501-4926
I/O Type 3
83/90/100MHz Gigaplane

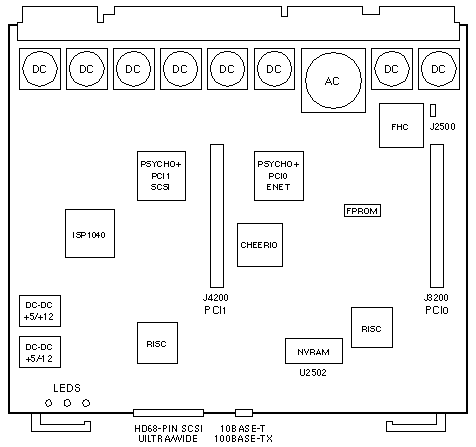

I/O Type 3 FRU
w 2× 5V Risers


Backpanel and Connectors

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J2500 1-2 Out Inv Adr 1

Notes

  1. The minimum Ex000 operating system is 2.5.1.
  2. The minimum Ex500 OS is 2.5.1 HW: 11/97 or 2.6 HW: 3/98.
  3. The Gigaplane runs at the speed of the slowest detected board.
  4. Option 2632 includes two 5V Riser Boards and two 3.3V Riser Boards.
  5. Up to three PCI I/O Boards are supported in the E3x00.
  6. Up to six PCI I/O Boards are supported in the E4x00, E5x00, and E6x00.
  7. The following cable types are supported:
    50/125 Multimode Fiber up to 2 Kilometers
    62.5/125 Multimode Fiber up to 500 meters
  8. Refer to the Install.info file of any Firmware patch for information on firmware verification and compatibility.

FlashPROM Notes

  1. Use the Flash PROM Programming Utility to update the FCode.
  2. Use the prom-copy command (src dst prom-copy) to copy a flash PROM.
    ok 2 b prom-copy (copies from board 2 to board 11)
  3. Use the update-proms command to synchronize the latest version of the flash PROM installed in the system to all boards of the same type.

NVRAM Notes

  1. The Clock Board and I/O Board NVRAMs are automatically synchronized when the Clock Board NVRAM contents matches at least one I/O Board NVRAM.
  2. Use the following OBP command to manually synchronize a new or replacement I/O Board to an existing Clock Board:
    ok copy-clock-tod-to-io-boards
  3. Use the following OBP command to manually synchronize a new or replacement Clock Board to an existing I/O Board:
    ok (ioboard# in hex) copy-io-board-tod-to-clock-tod

ISP1040 Ultra SCSI Controller Notes

  1. The ISP 1040 is an Ultra SCSI controller.
  2. Ultra SCSI transfer rates are not supported as of 6/98.
  3. Disable Ultra SCSI transfers to the onboard SCSI controller.
  4. Refer to PCI I/O Product Note, 805-3364 of September 1997.

References

  1. PCI I/O Board Installation, 805-1372.
  2. Enterprise 3500 System Reference Manual, 805-2630.
  3. Enterprise 4500/5500/6500 System Reference Manual, 805-2632.
  4. System Flash PROM Programming Guide, 802-5579.
