PCI Express Riser

Telco: Netra X4450

540-7706 540-7740 540-7741 540-7742
PCI Express Riser FRU
Riser-0 + Riser-1 + Riser-2
L

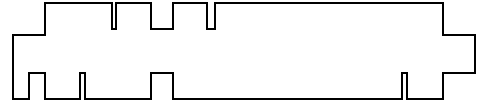

PCI Express Riser-0
Riser-0 371-3886 + Bracket
PCB 3167773300001
L

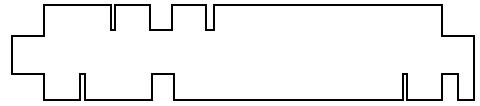

PCI Express Riser-1
Riser-1 371-3887 + Bracket
PCB 3167773300002
L

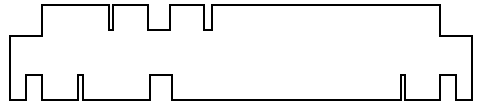

PCI Express Riser-2
Riser-2 371-3888 + Bracket
PCB 3167773300003
L
P>
Riser-0 371-3886

Riser-1 371-3887

Riser-2 371-3888

Netra X4450 Codename: Argo

Netra X4450 Notes

  1. Install Riser-0 in System Board Slot 0, Riser-1 in Slot 1, and Riser-2 in Slot 2.
  2. Riser 0, 1, and 2 may be incorrectly labeled 540-7746, 540-7747, and 540-7748.
  3. Risers 540-7746, 540-7747, and 540-7748 do not work in the Netra X4450.
  4. System board slots do not map directly to the PCI Mezzanine slots.
  5. System board slots do not map directly to the PCI Auxillary board slots.
  6. System Board PCI Express Channels 0 and 1 are electrically eight lanes wide.
  7. System Board PCI Express Channels 2, 3, 4, and 5 are electrically four lanes wide.
  8. Green retaining bracket 344769900005 does not have a Sun part number.

References

  1. Sun Netra X4450 Server Documentation.
