1-Slot x4 PCI Express/XAUI Riser

Telco: Netra T5220

371-2529 371-2698

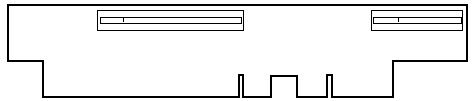

PCI Express/XAUI Riser-0 FRU
Riser-0 411764100021
Riser-0 + Bracket

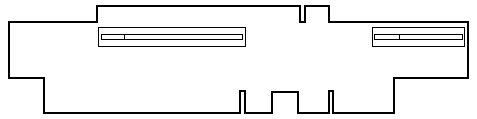

PCI Express/XAUI Riser-1 FRU
Riser-1 411764100026
Riser-1 + Bracket

Riser-0 371-2529

Riser-1 371-2698

Netra T5220 Codename: Turgo

Netra T5220 Notes

  1. One x8 form-factor PCI Express/XAUI Riser labeled Riser 0 is installed in Slot 0.
  2. One x8 form-factor PCI Express/XAUI Riser labeled Riser 1 is installed in Slot 1.
  3. One x8 form-factor PCI Express Riser labeled Riser 2 is installed in Slot 2.
  4. The Slot 0 and 1 PCI Express Channel is electrically four lanes wide.
  5. The Slot 2 PCI Express Channel is electrically eight lanes wide.
  6. The Bracket, Filler Panel, and Riser do not have individual Sun part numbers.

References

  1. Sun Netra T5220 Server Documentation.
