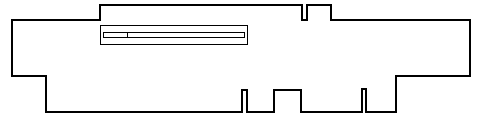

1-Slot x8 PCI Express Riser

Telco: Netra T5220

371-2528
PCI Express Riser-2 FRU
Riser -2 411764100031
Riser-2 + Bracket

Riser-2 371-2528

Netra T5220 Codename: Turgo

Netra T5220 Notes

  1. One x8 form-factor PCI Express/XAUI Riser labeled Riser 0 is installed in Slot 0.
  2. One x8 form-factor PCI Express/XAUI Riser labeled Riser 1 is installed in Slot 1.
  3. One x8 form-factor PCI Express Riser labeled Riser 2 is installed in Slot 2.
  4. The Slot 0 and 1 PCI Express Channel is electrically four lanes wide.
  5. The Slot 2 PCI Express Channel is electrically eight lanes wide.
  6. The Bracket, Filler Panel, and Riser do not have individual Sun part numbers.

References

  1. Sun Netra T5220 Server Documentation.
