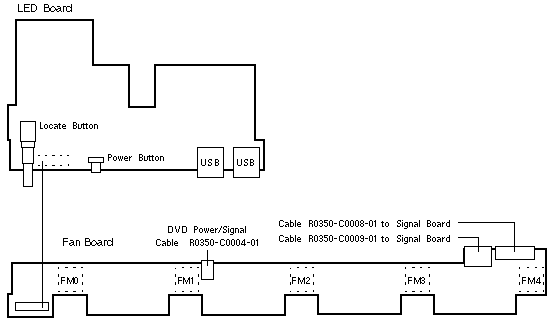

DVD Tray

371-4940 371-4943 542-0391
Fan Control Board
R0350-G0007-02
LED Board
R0350-G0008-02
DVD Tray Assembly/FRU
Assembly R0350-F0017-01
371-4940 + 371-4942
Tray Kit R0350-F0005
Cable R0350-C0004-01

Netra SPARC T3-1 Codename: Madrid
Netra SPARC T4-1 Codename: MadridT4-1

Notes

  1. The DVD Tray FRU includes cable R0350-C0004-01.
  2. The PDB FRU includes cables R0350-C0008-01 and R0350-C0009-01 (x2).
  3. Cable R0350-C0004-01 connects the Fan Board to the DVD and System Board.
  4. Cable R0350-C0008-01 connects the Signal Board to the Fan Board.
  5. Cable R0350-C0009-01 connects the Signal Board to the Fan Board.
  6. The cables are not assigned Sun/Oracle part numbers.

References

  1. Netra SPARC T3-1 Server Documentation.
