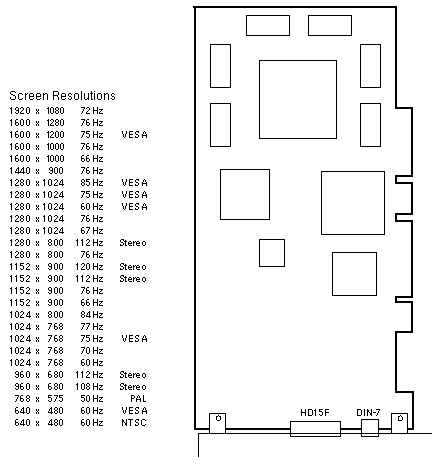

XVR-500 Graphics Accelerator

Codename: IFB Lite+

24-Bit Color Frame Buffer

Workstations: Sun Blade 150, 1000, 1500, 2000, 2500
Servers: Sun Fire V440, V480, V490, V880, V890, V210, V240
Telco: Netra 20

Option 3685

375-3069
3.3/5V 64Bit 33/66MHz
IFB-Lite+/Expert3D Lite+


UNIX ID: /dev/fbs/ifb0

Notes

  1. The minimum OS is Solaris 8 plus the XVR-500 Installation CD.
  2. Netra 20 requires Solaris 8 patch 108569-07 or Solaris 9 patch 113513-01.
  3. After installing the required Netra 20 patches, reinstall OpenGL.
  4. Option 3685 includes HD15 to DB13W3 Adapter 530-2917.
  5. X3685A is not supported in the Sun Fire V880 shipped with 750MHz USIII.
  6. The board is supported in either 33MHz or 66MHz PCI slots.

Reference

  1. fbconfig (1M) manual page.
  2. Sun XVR-500 Graphics Accelerator Documentation.
